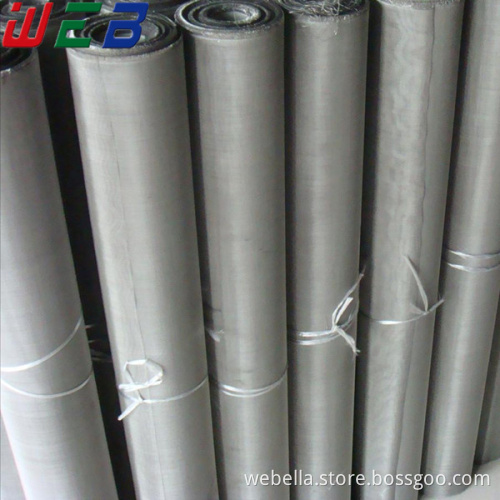

201 stainless steel wire mesh
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Certificate: | ISO9001:2000 |
1.Material:201 stainless steel wire
201 Chemical composition %:
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
N |
other |
|
≤0.15 |
≤1.0 |
5.5-7.5 |
≤0.06 |
≤0.03 |
3.5-5.5 |
16.0-18.0 |
≤0.25 |
- |
201 physical property:
|
yield strength |
tensile strength |
elongation rate δ5 (%) |
reduction of area φ (%) |
hardness |
hardness |
hardness |
|
≥275 |
≥520 |
≥40 |
≥45 |
≤241 |
≤100 |
≤253 |
2.201 stainless steel wire mesh specification:
>weave type:plain weave
>wire diameter:0.15-2mm
>mesh counts:3-635 mesh
>standard roll length:30m
>standard roll width:0.6-1.5m
We can produce stainless steel wire mesh width up to 6m and length up to 500m.
3.201 stainless steel wire mesh characteristics:
a.Square hole,warp wire and weft wire are of equal size.
b.Accurate in mesh size,high flow rate.
c.High efficient screeing,good stability,high opening rate,Low pressure loss.
d.flat surface,wear-resistant,good air permeability,firm in structure,easy to clean.
4.201 stainless steel wire mesh application:
a.widely used in aerospace, petroleum, chemical industry
b.scientific research and transportation industries
c.electroplating industry for pickling mesh, printing mesh
d.battery industry and a variety of sophisticated filtration products
Such as:filter disc,filter cartridge,conical strainer,microphone head,test sieves,wire basket,battery mesh,coal washing mesh,window screen,paper making mesh,oil vibration screeen.
