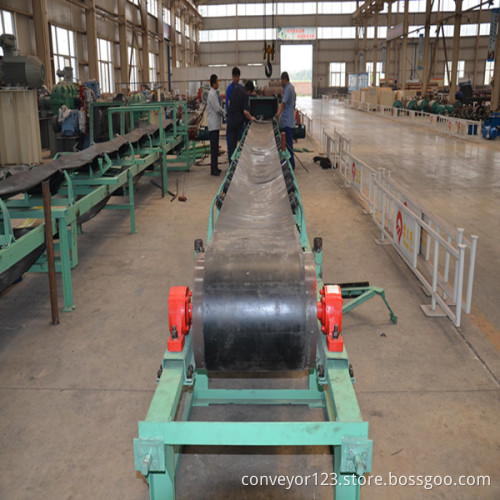

TD75 Belt Conveyor

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100

Product Description

Product Name: TD75 Belt ConveyorCategory: Belt ConveyorManufacturers: Golden Sun

TD75 belt conveyor is the general band conveyor type finalized in 1975, mainly used in metallurgy, mining, port, building materials industries and other departments to transport bulk material or pieces material.

TD75 type conveyor is simple, low cost, easy maintenance, and thus become a popular type conveyor. based on the transmission process requirements, can single conveying, can also be more sets and with other conveyor formed level or tilted conveying system.
We can design the system to meet your requirement,your any inquiry is highly appreciated.
The Product features of TD75 type:
1,The width of Belt: 500,650,800,1000,1200mm etc.
2,Derive Power: 1.5-200Kw, 12 kinds in total.,
3,Belt Speed: 0.8,1.0,1.25,1.6,2.0,2.5,3.15m/s,
Project Exhibition:

Technical Parameters:

Carrying idlers form	Belt speed(m/s)	Belt Width (mm)
		650	800	1000	1200	1400
		Conveying quantity(t/s)
Trough carrying idler	0.8	131	-	-	-	-
	1.0	164	278	435	655	891
	1.25	206	348	544	819	1115
	1.6	264	445	696	1048	1427
	2.0	323	546	853	1284	1748
	2.5	391	661	1033	1556	2118
	3.15	-	824	1233	1858	2528
	4.0	-	-	-	2202	2996
Paralle carrying idlers	0.8	67	118	-	-	-
	1.0	88	147	230	345	460
	1.25	110	184	288	432
	1.6	142	236	368	553	753
	2.0	174	289	451	677	922
	2.5	211	350	546	821	111
