DTII-A Belt Conveyor

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

DTIIA belt conveyor is a new model based on DTII`s design advantage plus innovation and development, It is a very mature and widely used model, especially for long-distance, large capacity, high-speed belt heavy delivery. DT II A Conveyor is used widely in metallurgy, mine, building, transportation and harbour industries used to convey scattered and block materials.
We can design the system to meet your requirements,your any inquiry is highly appreciated.

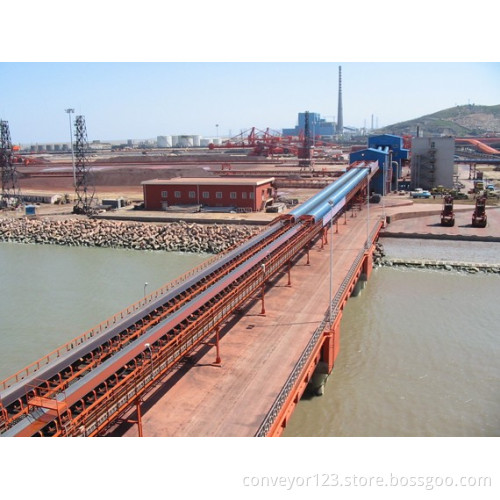

Project Exhibition:

Technical Parameters:

Belt width (mm)	Drive Pulley Diameter (mm)	Turnaround Pulley Diameter (mm)	Idler Diameter (mm)	Main motor
Belt width (mm)	Drive Pulley Diameter (mm)	Turnaround Pulley Diameter (mm)	Idler Diameter (mm)	Power Range	Voltage Range
500	500	250~500	89	2.2kw ~ 315kw	Power is less than 200 kw to 380 v; Power more than 220 kw for 3 kv or 6 kv;
650	500~630	250~630	89~108
800	500~1000	250~1000	89~159
1000	630~1600	250~1600	108~159
1200	630~1600	250~1600	108~159
1400	630~1600	315~1600	108~159
1600	630~1600	400~1600	133~194
1800	630~1600	400~1600	133~194
2000	800~1600	500~1600	133~194
2200	1000~1600	630~1600	159~219
2400	1000~1600	800~1600	159~219
