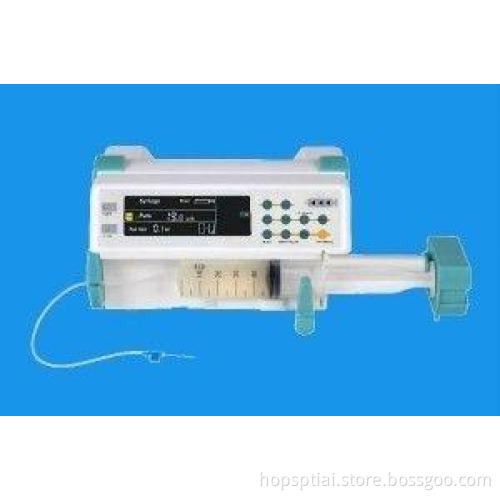

LED Display Syringe Pump Medical Vacuum Pumps For Hospital
Quick Detail:
Compatible Syringe: Any standard syringe with 5ml, 10ml, 20ml, 30ml, 50ml and 60ml.
Description:
1. Four working modes:
Rate mode, Time mode, Weight mode and Drug mode
2. 174 Drugs with 10 Categories of Drug Library
Cardiovascular Sys, Respiratory Sys, Antibiotics Sys, Alimentary Sys.
Nervous Sys, Analgesic Sys, Urinary Sys, Blood Sys, Endocrine Sys.
17 units of dose: Ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h, mg/kg/h, g/kg/h, ug/min, mg/min, g/min, ug/h, mg/h, g/h, U/min, IU/h, U/kg/h, ng/kg/min, can make drug dispensing more convenient and safer.
3. ICU infusion workstation: Combines for syringe pumps and one infusion
Pump with Infusion Support into one ICU Infusion Workstation, sharing a Power Interface.
4. Stackable up to the maximum 8 channels. Transfer the message between the Nurse-call System and the pumps.
5. Bolus Function.
|
Multi-channels Syringe Pump JAZ-1800C |
|
|
Model specification |
JAZ-1800C |
|
Flow rate(ml/h) |
50ml: 0.1-1800ml/h 20ml: 0.1-800ml/h 10ml: 0.1-400ml/h 5ml: 0.1-200ml/h any standard syringes are available |
|
Time mode |
SOL. VOL.: 0.1-999.9ml (0.1ml step) Running Time: 1-1999min (1min step) |
|
Body weight mode |
SOL. VOL.: 0.1 - 999.9mg (0.1mg step) |
|
Occlusion Pressure |
High, Middle and low |
|
Purge Rate(ml/h) |
50ml (60ml): 1800.0ml/h, 20ml (30ml) 800.0ml/h, 10ml: 400.0ml/h 5ml: 200ml/h |
|
Bolus Rage |
10ml: 10-300ml/hr, 20ml(30ml): 0-600ml/hr, 50ml(60ml): 10-1200ml/hr |
|
Bolus Volume |
Maximum of 25ml |
|
KVO Rate |
1ml/h |
|
Volume Limit Range |
0.1-1999(0.1ml step) |
|
Total Volume Range |
0.1-1999(0.1ml step) |
|
Accuracy |
± 2% with correct calibration |
|
Alarm |
Near empty, Syringe empty, Volume complete (when limit volume has been set), Occulusion, Syringe loose, Operation errors, Low battery and device failures. |
|
Dimension(mm) |
280mm(L)× 160mm(W)× 130mm(H) |
|
Net weight(Kg) |
2.2kgs |
|
Power supply |
AC power supply: AC 100 to 240V± 10%, 50/60Hz |
Competitive Advantage:
Our company research and development with independent intellectual property rights of Syringe Pump , technology mature and stable, easy operation, high cost performance, etc. It is through the Chinese many hospitals more than 10 years of clinical tests, get professional certification agency inspection of quality product. Our products sell very good in the international market, please choose to cooperate with us, this is your wise choice. We will use high-quality products, excellent service to prove your wise choice.
