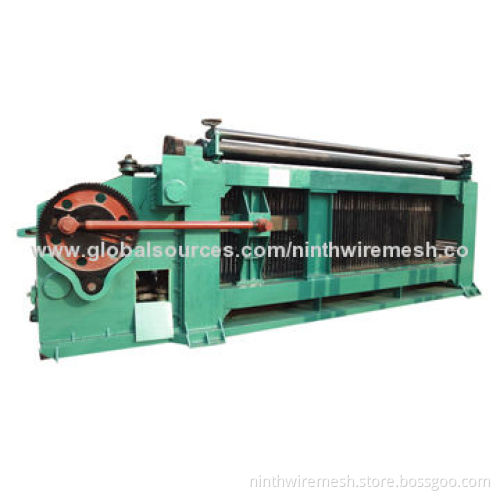

YNW Series Gabion Mesh Machine, Making Hex Wire Mesh, with Thick Wire DiameterNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Hydraulic heavy-duty hex net smooth noiseless, hydraulic drive, PLC auto-control and new model (YNW series)

Weaving iron wire of twisting hex net should be in accordance with below requirements:

Normal weaving iron wire is in annealing
Normal weaving electroplating zinc iron wire is plated by annealing iron wire (GB 9972-88)
Normal weaving hot-galvanized iron wire as GB 3081-82
Tensile strength for above steel wire should be 295-490N/mm²

Specification for YNW-32:

Wire diameter: maximum 3mm for steel wire and 4.2mm for PVC wire
Hole sizes: 60*80, 80*100 and 100*120mm
Maximum hex mesh width: 3.2m
Overall size: 6150*1570*2600mm
Weight: 13,000kg
One whole set includes wire tension part, wire rolling part and spiral making machine

Normal weaving iron wire is in annealing

Normal weaving electroplating zinc iron wire is plated by annealing iron wire (GB 9972-88)

Normal weaving hot-galvanized iron wire as GB 3081-82

Tensile strength for above steel wire should be 295-490N/mm²

Wire diameter: maximum 3mm for steel wire and 4.2mm for PVC wire

Hole sizes: 60*80, 80*100 and 100*120mm

Maximum hex mesh width: 3.2m

Overall size: 6150*1570*2600mm

Weight: 13,000kg

One whole set includes wire tension part, wire rolling part and spiral making machine
