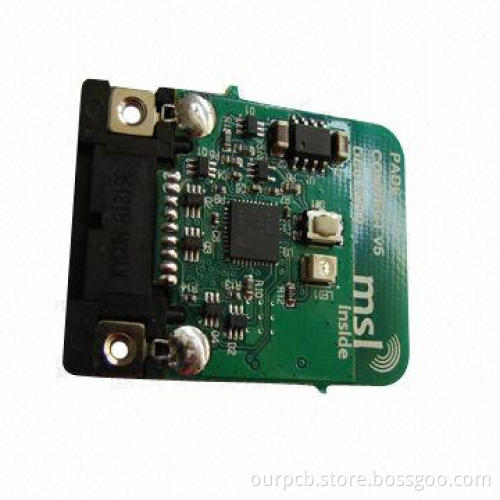

High-density Multilayer PCB Service

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

PTH hold diameter tolerance:

Non P.T.H. hole diameter tolerance:

Minimum line width: 0.1mm

Minimum space: 0.1mm

Minimum hole size: 0.3mm

P.T.H. wall thickness: greater than 0.025mm

Hole position deviation: ± 0.05mm

Outline tolerance: ± 0.13mm

Peel strength: 1.4mm

Minimum SMT pitch: 0.5mm

Minimum edge clearance (routing): 0.38mm

Minimum edge clearance (scoring): 0.76mm

Drill location tolerance: ± 0.08mm

Circuit width tolerance:

Immersion gold and immersion tin are available

Small orders are accepted

Lesser diameter 3.175mm and ± 0.05mm

Greater diameter 3.175mm and ± 0.10mm

Lesser diameter 3.175mm and ± 0.05mm

Greater diameter 3.175mm and ± 0.10mm

IPC specifications ± 20%;

RF/microwave to ± 0.025mm
