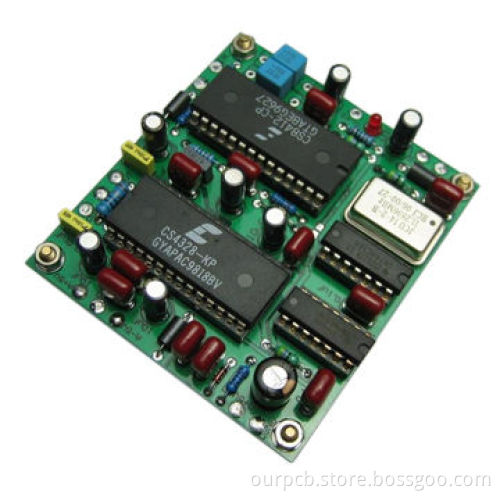

PCB and Assembly Service with 0.2 to 7.0mm Board Finished Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

Military standard assembly

Surface mount, through hole, BGA, QFP, QFN

ROHS compliant and lead-free process

ISO9001 certification

Turnkey service (PCB manufacture, components procurement andassembly)

Reliable parts

Technical requirements:

Layers: 1 to 32

Board finished thickness: 0.2 to 7.0mm

Materials FR-4, CEM-3, high TG, FR4 Halogen-free, Rogers

Maximum finished board size: 580 to 900mm

Minimum hole size: 4mil (0.1mm)

Minimum trace width/space: 3.5/3.5mil

Surface finishing/treatment: HASL/lead-free HASL, immersiongold, gold plating, immersion silver, immersion tin, OSP

Copper thickness: 0.5 to 6oz

Solder mask colors: green/yellow/black/white/red/blue

Copper thickness in hole: >18um

Inner packing: vacuum packing/plastic bag

Outline tolerance: ±0.13mm

Hole size tolerance: PTH: ±0.076mm, NPTH:±0.05mm

Quality ensure: UL approval, TS16949:2002

Special requirements: buried and blind vias, impedance control,via plug, BGA soldering, gold finger

Profiling: punching, routing, V-cut and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Professional surface-mounting and through-hole solderingtechnology

Various sizes like 1206, 0805, 0603 components SMTtechnology

ICT (In Circuit Test), FCT (Functional Circuit Test)technology

PCB assembly with UL, CE, FCC, RoHS approvals

Nitrogen gas reflow soldering technology for SMT

High standard SMT and solder assembly line

High density interconnected board placement technologycapacity
