Green yellow blue 3d curved wire mesh fence curved fence mesh panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Specifications

14_7_21_18_12_46_

Wire Dia.	Mesh Size	Panel width	Panel Heights	Fold No.	Post's height		Post Model
					into the ground Fix1	fastened Fix2
4.0mm	200*50mm	2.0m	830mm	2	1200	900	H Shape Post V Shape Post Peach Shape post
			1030mm	2	1400	1200
4.5mm	200*55mm	2.255m	1230mm	2	1600	1400
			1530mm	3	2000	1700
5.0mm	200*60mm	2.5m	1730mm	3	2200	1900
			1830mm	4	2300	2000
5.5mm			2030mm	4	2500	2200
	200*65mm	3.0m	2230mm	4	2700	2400
6.0mm			2530mm	5	3000	2600

Product Description

It is an economical version of the panel system, constructed from a welded mesh panel with longitudinal

profiles that forms a rigid fence. The fence panel is welded with high quality low carbon steel

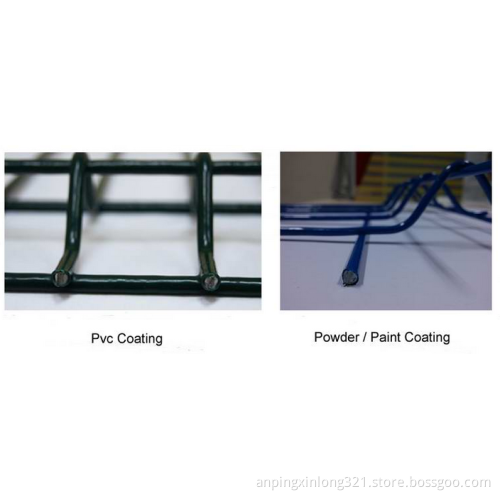

wire, surface treated by electrostatic polyester powder spray coating over galvanized materials.

Then connect the fence panel with post by suitable clips. Due to its simple structure, easy installation

and nice appearance, more and more customers regard this product as the preferred common protective fence.

Application

Widely used for prevention for road, highway, railway, garden, airport, residential district, seaport, feeding and husbandry,military base


FAQ

1. Reinforcing welded wire mesh panels Payment :

T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30% deposit,

70% L/C st sight

2. Reinforcing welded wire mesh panels Delivery:

within 15 days after receiving the advance payment
