Optic Fiber Patch Cord LC/SC/FC/ST
- Incoterm:
- FOB
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs per week |
| Supply Ability: | 10000 pcs per week |
| Incoterm: | FOB |
| Certificate: | CE,ROHS,UL |
Product Description
Product Description

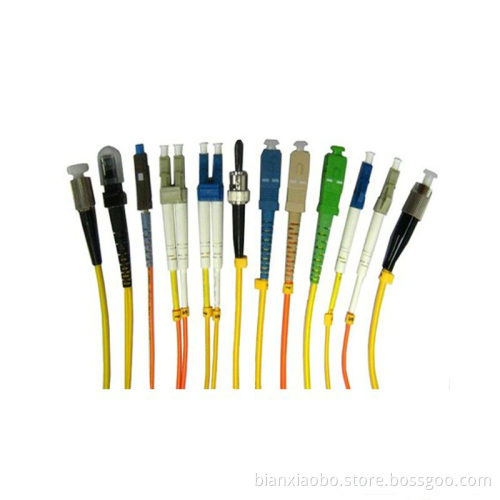

Optic fiber patch cord LC/SC/FC/ST
1.Own factory,welcome OEM
2.SX, DX, SM, MM patch cord
3.Low insertion loss
4.HIgh return loss
fiber patch cord SC/LC/FC/ST
Specifications
| Type | Standard,Master |
| Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemade) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability |
±0.1dB |
| Operating temperature | -400C to 850C |
|
Geometry Requirement (For Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Ordering Choices:
Fan-out patch cord; Simplex/Duplex patch cord;
Pigtails; LC/APC LC/PC SM LC/PC MM;
Various bootcolor; Various boot (cable) sizes;
Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
-Simplex and Duplex assemblies available
-Singlemode and multimode available
-PC, UPC and APC polishing available
-PVC and LSZH outer sheath.
-0.9mm, 2.0mm and 3.0mm cable size.
-Hybrid patch cords are available upon request
-Fan-out available (Ribbon type / bundle type)
-Pigtail available
-Loopback available
-Customized lengths upon request
-100% tested before shipping
Product application
1. Local Area Network
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.CATV
7.Fiber optics data transmission(FODT)
