Fiber Optic Test Pen Visual Fault Locator Laser Pen
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 20 Piece/Pieces
- Min. Order:
- 20 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100000 pcs per week |
| Supply Ability: | 100000 pcs per week |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,RoHS,UL |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description

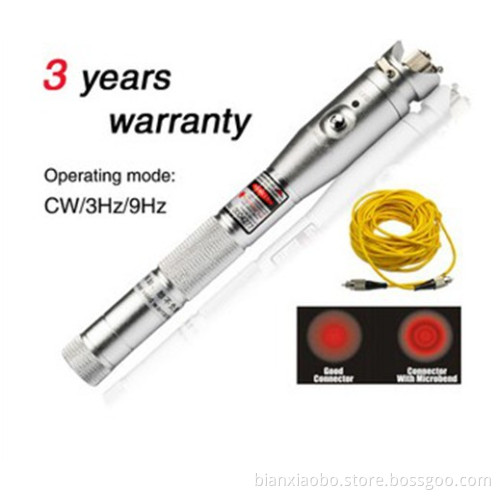

Fiber Optic Test Pen Visual Fault Locator Laser
Pen
VFL650-1 series Visual Fault Locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser.The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber.It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
Applications
· Maintenance in telecom , CATV
· Test Lab of optical fibers
· fiber routing and continuity checking in optical networks.
· Other fiber optic measurements
Key Features – Pen-Type Visual Fault Locator
· 2.5mm universal connector,
· Operates either in CW or Pulsed mode with constant output power
· Long battery life (up to 60 hours)
· drop-resistand and dust-proof design of laser head
· Laser case ground design prevents ESD damage
· Portable and rugged
· Easy to use
· Meets CE standards including EMC, EMI, ROHS
Technical Specifications – -Visual Fault Locator
Skype: ls.telecom
VFL650-1 series Visual Fault Locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser.The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber.It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
Applications
· Maintenance in telecom , CATV
· Test Lab of optical fibers
· fiber routing and continuity checking in optical networks.
· Other fiber optic measurements
Key Features – Pen-Type Visual Fault Locator
· 2.5mm universal connector,
· Operates either in CW or Pulsed mode with constant output power
· Long battery life (up to 60 hours)
· drop-resistand and dust-proof design of laser head
· Laser case ground design prevents ESD damage
· Portable and rugged
· Easy to use
· Meets CE standards including EMC, EMI, ROHS
Technical Specifications – -Visual Fault Locator
| Model | VFL650-1 |
| Central wavelength | 650nm±10nm |
| Emitter type | FP-LD |
| Output power | Optional choice for 5mw, 10mw,20mw,30mw,40mw,50mw |
| Optical connector | 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request |
| Operating model | Both CW and Pulse available |
| Pulse frequency | 3Hz to 9Hz |
| Power supply | 2AA alkaline batteries |
| Operating temperature | -20°C to 60°C |
| Storage temperature | -40°C to 85°C |
| Dimension | -FL-001 Φ23 X 183 |
| Weight | 110g (without battery) |
