Two Wave Guardrail cold Roll Forming Machine , highway guardrail pretection sheet forming machine

Specifications 1.high quality and competive price

2.easy to operation

3.CE and ISO certificate

4.PLC control

5.customized as ur need

   highway gardrail  rolling machine      1.the chart of process flow     Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand     2.Technical specifications

Technical parameters:
1	Name of commodity & specification			highway guardrail roll forming machine
2	Main motor power			22kw, 3 phase
3	Hydraulic motor power			5.5kw
4	Hydraulic Pressure			10-12MPa
5	Voltage			380V /3phase/ 50 HZ (or as your requirement)
6	Control System			PLC Delta Inverter
7	Main Frame			300mm H-Beam
8	Backboard Thickness			14mm
9	Chain Size			20mm
10	Feeding Material			483mm
11	Feeding Thickness			1.5-3.0mm
12	Feeding Width			1000/1200/1250mm
13	Productivity			8-12m/min
14	Roll Station			11-16(or depend on your requirement)
15	Roller Diameter			72mm
16	Roller material			45# steel
17	Cutter material			Cr12 , quenched
18	Cr-Plating Size			0.05mm
19	Overall Size			6*1.3*1.4m
20	Total Weight			3.5T
21	Components			Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set
22	Workflow			Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
23	Package			nude in the container
24	Minimum order quantity			1 set
25	Payment terms			T/T(30% T/T pay in advance, the remaining 70% pay before ship)
26	Delivery time			30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.

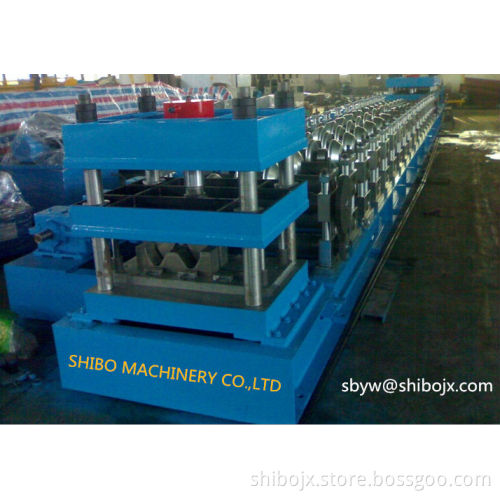

  3. the picture of machine:    The body                  PANEL DRAwing       guardrail panel sample           Manual decoiler
plc control system
  packing    Certification                  contact information
