custom-made forming machine for metal sheets

Specifications forming machine for metal sheets

1. Low energy consumption

2. ISO certificated

3. Automatic cutting

4. Small error

         Custom-made forming machine for metal sheets          Product Description      The chart of process flow   Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand   Main parameters

No.	main parameter of roll forming machine
1	Suitable to process	Color steel plate
2	Width of the plate	1100mm
3	Rollers	15rows
4	Dimensions	7000mm*1500mm*1200mm
5	Power	5.5+3kw
6	Thickness of the plate	0.3-0.8mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ75mm
9	Weight	About 4T
10	Voltage	380V 50Hz 3phases
11	Rolling material	Forging Steel 45#
12	Material of the cutting plate	Gr12
13	Hydraulic	40#
14	Processing precision	below 1.00mm
15	Control system	PLC control
16	Thickness of chain	25.4mm
17	Transportation system	Chain transportation

    Hydraulic shearing

Material of blade	Cr12,heat treatment 60-62°C
Shearing system	It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 3kw Hydraulic oil :40#

   Electrical system

Screen display

5.7 inches TaiDa touch screen

Main computer control cabinet

It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is EURA The seller should provide Chinese and English language screen.

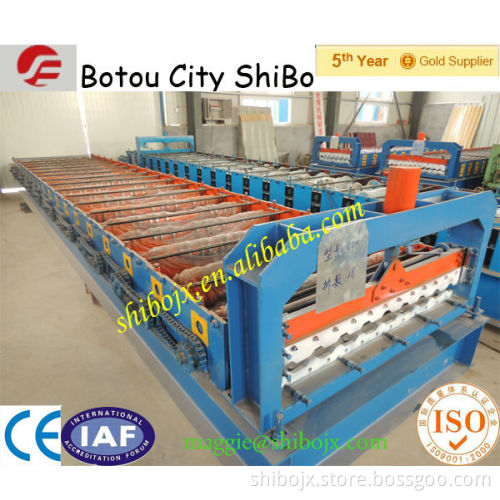

  Machine pictures        Packaging & Shipping Paking the forming machine for metal sheets          Workshop pictures Certifications   Our Services We are responsible for the installation and debugging if you buy the forming machine for metal sheets . Equipment parts are guaranteed for one year, Within a year of equipment parts nonhuman damage(in addition to electric), we undertake free swap or maintenance for you.     Any question,please call informed.If you need other equipments,welcome to land our website:en.alibaba.com   Or you can contact us immediately: My Skype: shibojx3 QQ:2318058427  Thanks!      Company Information Botou City ShiBo Machinery CO.LTD, founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise .With many years’experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers.
