fire resistant board lower price ceramic fiber board
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
Low thermal conductivity and shrinkage
High working tmperature
very competitive prices
fire resistant board lower price ceramic fiber board
Ceramic Fiber Board Packing

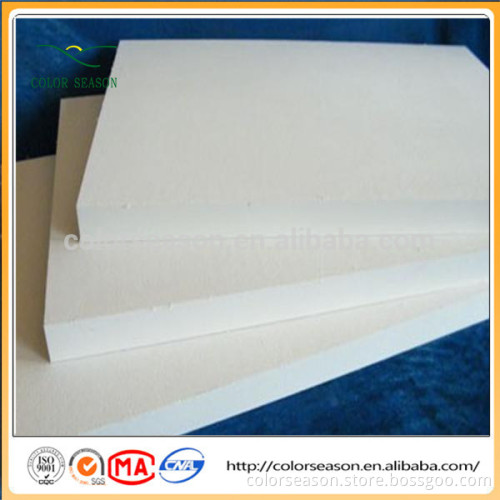

Ceramic Fiber Board Introduction The ceramic fiber board are made of different refractory fiber bulks with excellent chemical stability,organic and inorganic bond bywet method and vacuum forming processing which is applitical to many kinds of industries .The fiber board with a characteristics of hard, flexible, excellent strength and resistance against corrosion.
Ceramic fiber board | |
Dimension(mm) | 2400/1200x1200/600x(3-100) |
BulkDensity(kg/m3) | 280-600 |
Packaging Details | Carton box, woven bag outside with plastic bag inside |
Applications | Furnace, Kiln liner, Astronavigation, Shipbuilding |
to separate plate 3.Deep processing products molding mould, like Craft glass etc 4.Astronavigation,Shipbuilding heat insulation,fireproofing, sound proofing, insulation.
Ceramic Fiber Board Technical Data ITEM | Standard | Prue | High Aluminum | Zirconium | |
Classification temperature(℃) | 1260 | 1260 | 1360 | 1430 | |
Work temperature(℃) | 1050 | 1100 | 1200 | 1350 | |
Color | white | white | white | white | |
Density(kg/m3) | 280-600 | 280-600 | 280-600 | 280-600 | |
Permanent.linear shrinkage(%) | -3 (1000℃) | -3 (1100℃) | -3 (1250℃) | -3 (1350℃) | |
| Thermal conductivity (w/m.k) | 0.09(400℃) 0.176(800℃) | 0.09(400℃) 0.176(800℃) 0.22(1000℃) | 0.132(600℃) 0.22(1000℃) | 0.76(600℃) 0.22(1000℃) | |
Tensile.strength(Mpa) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | |
|
Chemical Composition(%) | AL2O3 | 46 | 47-49 | 52-55 | 39-40 |
| AL2O3+SIO3 | 97 | 99 | 99 | - |
| AL2O3+ SIO3+ ZrO2 | - | - | - | 99 |
| ZrO2 | - | - | - | 15-17 |
| Fe2O3 | <1.0 | 0.2 | 0.2 | 0.2 |
| Na2O + K2O | ≤0.5 | 0.2 | 0.2 | 0.2 |
Size(mm) | 2400/1200x1200/600x(3-100), other size due to your demand. | ||||
Package | Cartons | ||||
Ceramic Fiber Board Features Low thermal conductivity and shrinkage Low heat storage Excellent resistance against chemical attack Easy to machine ,cut and install Good thermal stability, high temperature not pulverization Without binders and corrosive substances Good sound-absorbing performance Insulation stuffing in the corner and complex space
