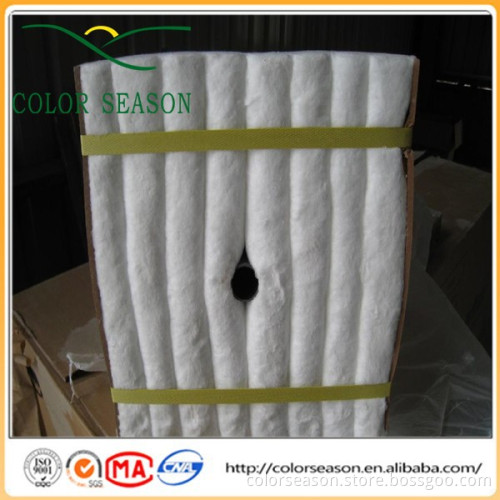

1260 Ceramic Fiber Module For Sale

Specifications 1.Ceramic Fiber Module

2.Temp: 1260C

3.Density:160-260kg/m3

4.Low price with high quality

 1260 Ceramic Fiber Module For Sale   1)Ceramic Fiber Module is cut from folded fiber blanket. all can be processed mechanically,and with the advantage of smoothly surface and anterode,no fiber rupture ,our products with advanced RX2 anchor system ,the fixing operation  easy ,quick,and efficiently. 2)Ceramic Fiber Module Application: •  Petrochemical furnaces, cracking furnaces . •  Steel industry furnace, annealing furnace,      roller hearth furnace, etc. •  The aluminum industry are hot furnace, furnace are Ceramic      industry tunnel kilns,    intermittent kilns. •  Waste recycling, combustion chamber. •  High-end household appliances insulation device.

Product Item		COMMON	STANDARD	HIGH PURITY	HIGH ALUMINA	HIGH ZIRCON
Specification Term(°C)		1100	1260	1260	1360	1430
Working Temp(°C)		<1000	1050	1100	1200	1350
Density(Kg/m3)		220±15	220±15	220±15	220±15	220±15
Chemical composition(%)	Al2O3	44	46	47-49	52-55	39-40
	Al2O3+SiO2	96	97	99	99	-
	Al2O3+SiO2+ZrO2	-	-	-	-	-
	ZrO2	-	-	-	-	99
	Fe2O3	<1.2	<1.0	0.2	0.2	0.2
	Na2O+K2O	≤0.5	≤0.5	0.2	0.2	0.2
Size(mm)		Common Specification:600*240-300*100-200(no anchoring-structure)      300*300*250(anchoring-structure) producing various anchoring-structure modules according to the drawing provided by customers.

  •  Low thermal conductivity, low thermal capacity •  Excellent thermal stability and good resistance to heat shock •  Excellent tensile strength •  Good anti-stripping performance •  Good Sound-absorbing performance •  Non-brittleness material, good flexibility •  Excellent machining performance •  Resistance to wind and erosion,long service life •  Excellent heat insulation, fire prevention,      sound absorption performance
