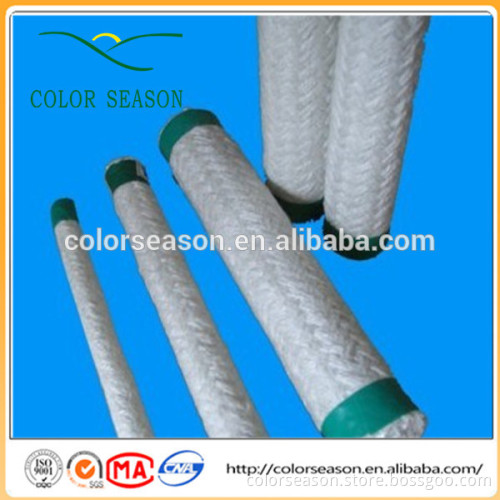

High Quality Thermal Insulation Ceramic Fiber Rope

Specifications Ceramic Fiber Rope

1.steel wire reinforced rope

2.high quality

3.braided/twisted/square

4.ceramic fiber rope,tape,cloth

High Quality Thermal Insulation Ceramic Fiber Rope   *All are made from our high quality ceramic fiber material. They can be used for high temperature applications up to 2300 F. *The rope is reinforced with fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property. 2)Ceramic Fiber Rope Application: *Heat insulation furnace curtain, large area thermal insulation. *Radiant heat shielding, flexible fabric expansion joints for high temperature piping. *Safety blankets, welding blankets, protective and insulating covers, gaskets, cable or pipe wrapping,etc

ITEM		Ceramic Fiber    Square Braided Rope		Ceramic Fiber Round Braided Rope
Basic Material		Reinforced with glass fiber	Reinforced with stainless stell wire	Reinforced with glass fiber	Reinforced with stainless stell wire
Work temperature(℃)		600	1050	600	1050
Classification temperature(℃)		1260		1260
Bulk Density (kg/m3)		500-600		500-600
Water content(%)		≤2		≤2
Organic  content (%)		≤15		≤15
Thermal conductivity (w/m.k)		0.12(300℃)        0.16(600℃)        0.20(1000℃)		0.12(300℃)        0.16(600℃)        0.20(1000℃)
Chemical Composition(%)	AL2O3	>46		>46
	AL2O3+ SIO3	>97		>97
	Fe2O3	<1.0		<1.0
Delivery State		roll		roll
Size(mm)		50000/200000x10/25/30		10000x(20x20/30x30)
package		Plastic bag inside, and braided bag outside

  *Lightweight and low thermal conductivity. *Excellent insulation at high temperature. *Resists corrosive chemicals, commonly used acid and alkali.  *Strong and abrasive. It can be used in tough environment. *Good substitute of asbestos products in many insulation and sealing applications. *Reinforcing material: glass fiber wire, stainless steel wire, glass fiber and stainless steel wire
