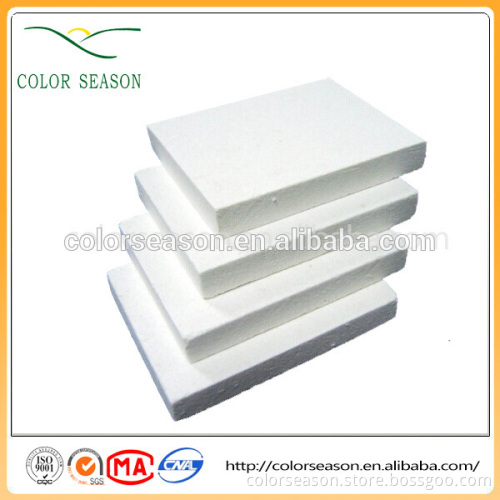

Insulating Ceramic Fiber Board for Furnace

Specifications Low thermal conductivity and shrinkage

Low heat storage

Excellent resistance against chemical attack

Easy to machine ,

Insulating Ceramic Fiber Board for Furnace        The ceramic fiber board are made of different refractory fiber bulks with excellent chemical stability,organic and inorganic bond bywet method and vacuum forming processing which is applitical to many kinds of industries .The fiber board with a characteristics of hard, flexible,excellent strength and resistance against corrosion.  Typical Application 1.Refractory lining for industrial furnaces 2.Combustion chamber liner, boilers and heaters 3.Back-up insulation for monolithic refractories 4.Transfer of non-ferrous metals 5.Expansion joiot boards 6.Barrier against flame

Item	COM	ST	HP	HA	HZ
Specification(°c)	1100	1260	1260	1360	1430
working tem(°c)	≤1000	1050	1100	1200	1350
color	white
density(kg/m3)	280-600
rate of liner(%) (24h density320kg/m3)	-4	-3	-3	-3	-3
rate of thermal conductivity (w/m.k)(density128kg/m3)	0.085(400°c) 0.132(800°c) 0.18(1000°c)
tensile strength(mpa)	0.08-0.12



Chemical(%)	COM	ST	HP	HA	HZ
Al2O3	44	46	47-49	52-55	39-40
Al2O3+SiO2	96	97	99	99	--
Al2O3+SiO2+ZrO2	--	--	--	--	99
ZrO2	-	-	-	-	15-17
Fe2O3	<1.0	0.2	0.2	0.2	0.2
Na2O+K2O	≤0.5	0.2	0.2	0.2	0.2

  1.low thermal conductivity , low thermal capacity  2.High compression strength 3..High thermal stability ,resistance to thermal shock,flame and airflow attack 4.Resistance to corrosion,high compressive strength. 5.High toughness,easy to cut and install quickly 6. Accurate dimension and good palneness
