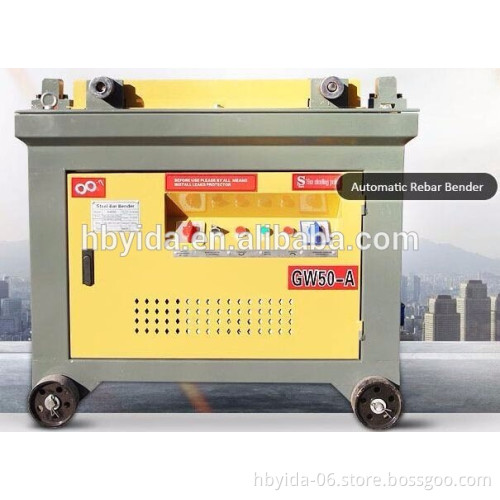

GW50A automatic Construction rebar bending machine electric steel bar bender

Product Description GW50A Construction rebar bending machine, electric steel bar bender
Bar bending machine is one kind of steel bar processing machine,widely used construction building field. It constitued by the motor, gear, operation disc, breaker and machine body. This machine is able to bend ribbed steel bar diameter from 6mm to 32mm/36mm/38mm/40mm/45 mm/50mm, with various shapes using in construction project.

SPECIFICATIONS FOR REBAR BENDING MACHINE
Main performance parameters	Brife Introduction
	Bar bending machine is one kind of steel bar processing machine,widely used construction building field. It constitued by the motor, gear, operation disc, breaker and machine body. This machine is able to bend ribbed steel bar diameter from 6mm to 40/50/6070 mm, with various shapes using in construction project. According to bending capacity, it can be classfied GW40,GW50,GW60,GW70 model bar bending machine with manual, automatic,PLC.
Advantages&Features	1.The motor, 100% copper motor with speed 1420r/min, normally this motor can work 2 years without breaking; 2.The gear, our gear material ductile iron QT500-7 which have high precision and hardness, promise machine capacity, dural above 5 years. All the gears are fine processed twice; 3.The operation disc material carbon structure steel 45# guarantee the disc long time use with 24 hours; 4.The painting , anti-rust spray painting inside and outside, beautiful and promise long machine life in working condition; 5.It adds eccentric bushing, ultra-high hardness accessories and adjustable baffles, special for different diameter and longer service life.

Technical Parameter: GW50 Automatic Rebar Bending Machine

• Bend C45E4 round steel diameter:(φ6-φ50)mm

• Bend HRB335 ribbed steel diameter:(φ6-φ42)mm

• Diameter of working disc:φ380mm

• Speed of working disc:10r/min (low speed: 5r/min)

• Motor power:4KW

• Overall size:970x850x850mm

Certifications Packing & Delivery

Packaging
Size	970 (L) * 850 (W) * 850 (D)
Weight	450KG
Packaging Details	Iron frame and carton packing export standard or as your requirements or pack it according to customers special request.
