Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications 1.Process thread on the rebar ends

2.Rebar dia. from 12~40mm

3.Easily handy

4.Power and voltage:according to your order

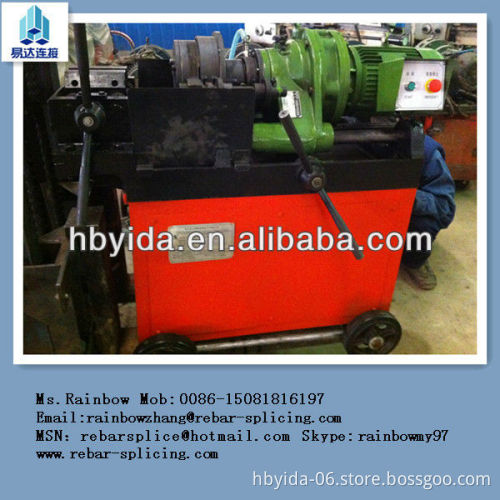

rib peel rolling and threading machine This machine tool can complete the screw thread making in one time loading which contains rib peeling rolling and stamping and the diameter range of the reinforcing bar is from 16mm to 40mm .
The Technical Parameter for the Machine:Customer special demand is available.
the technical parameter for BGZL-40 steel bar rib peeling and threading machine

The Machine Model	BGZL-40B2 Machine
Rolling Roller model	E	F	G	H
Thread Pitch (mm)	2.0	2.5	3.0	3.0
Steel Bar Standard	16	18,20,22,25	28,32	36,40
The Whole Machine Weight	510Kg
The Power of Main Electric Motor	4.0KW
The Power Of Water Pump Electric Motor	0.09KW
The Work Voltage	380V 50Hz
The Output Rotate Speed of Reducer	62
Dimension(Mm)	1000X500X1000mm
