BDC-1 rebar upset forging machine & threading machine

Specifications 1.use Upset Forging machine to forging rebar end.

2.use Rebar Thread Cutting machine to process thread.

3.use rebar coupler

BDC-1 rebar upset forging machine & threading machine     Advantages: 1. The tensile strength of this system can be reach 1.1 times of steel bar, make sure 100% BAR BREAK; 2. Easy operation, high efficiency, forging and threading one rebar end only cost no more than one minute.   Package: Inner fumigation-free wooden case .   Principle: First, we use Upset Forging machine to forging the end of rebar. Second, we use Rebar Thread Cutting machine to process thread on the forged end of rebar; Third,we use Upset parallel thread coupler to abuting joint two threaded ends of rebar .   Detailed technical information of upset forging machine:

Rebar diameter range:	φ16-φ40
Oil pump flux:	5L/min
Rating power:	<60Mpa
Electric motor power:	4KW
Piston movement distance:	100mm
Out dimension(mm):	1225×570×1100mm
Weight:	597Kg

  Upset forging Machine BDC-1 Photo:   Detailed technical information of Rebar Thread Cutting Machine:

Rebar diameter range:	φ16-φ40
Threading Cutting Speed:	32r/min
Backing Speed:	64r/min
Electric motor power:	2.4/3KW
Cutting Head Movement distance:	150mm
Out dimension(mm):	1325×570×1070mm
Weight:	537Kg

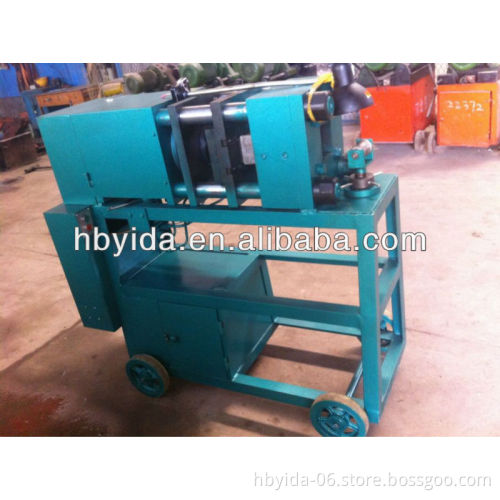

    Machine Photo:           If you're intested in more about our rebar forging machine & parallel thread machine,contact us in first time, my name card below:
