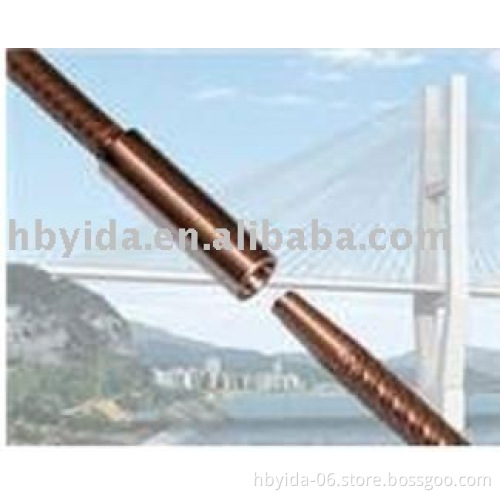

high strength threaded rebar coupler for machanical connecting in construction

Specifications 1,the material is carbon constructional quality steel of No.45

2,diameter of coupler is from 16mm to 40mm

3.Bar Break

4.High

 high strength threaded rebar coupler for machanical connecting in construction   * High Quality Rebar Mechanical Splice
* 100% Bar Break Performance
* Solves Bar Congestion Problems
* High efficiency
* Reduces Steel Waste
  The Parameter of Upsetting Rebar Coupler:

Size	Thread	D(±0.5)mm	L(±1) mm	Pitch	Weight(Kg)
Φ16	M20	26	40	2.5	0.09
Φ18	M22	29	44	2.5	0.114
Φ20	M24	32	48	3	0.16
Φ22	M27	36	52	3	0.207
Φ25	M30	40	60	3.5	0.32
Φ28	M33	44	66	3.5	0.398
Φ32	M36	50	72	4	0.62
Φ36	M39	56	80	4	0.875
Φ40	M45	62	90	4	1.138



	Type A: The Type A coupler is used for applications where the continuation bar can be rotated. The ends of the bars are upset and threaded for half the length of the coupler.
	Type B: The Type B coupler uses the same coupler as the Type A system, but one bar is threaded for the full coupler length. It is designed for applications where it is difficult but not impossible to rotate the continuation bar.
	Type C: The Type C has an additional locknut and is used where the continuation bar cannot be rotated. The continuation bar is threaded for the full length of the coupler plus the length of the locknut.

  1,the material is carbon constructional quality steel of No.45 2,diameter of coupler is from 16mm to 40mm
