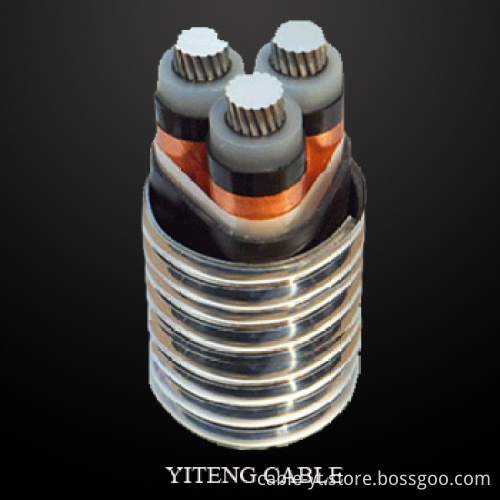

Armored Aluminum Alloy Cable







Product Name:YJHLV8(AC90)



YJHLV8(AC90)is a high flexible self-locking aluminum aluminum armored, 90℃XLPE insulated single core or multi-core low smoke and free halogen Grade A cable.



YJHLV8(AC90) reduces the difficulty in duct wiring and labor cost.The cable has been assembled with highly flexible selflocking aluminum armor and there is no need to conduct the procedures such as duct and its accessories and manual intensive wire drawing, threading and pipe formation.



YJHLV8(AC90) .It can be applied to lay open wiring in non-humid environment.And it applies same performance with the wire laying way of duct. ZA-AC90(-40)is of low smoke and free halogen and is in line with the testing items standards IEC60754,GB1765.2 and GB12706.1.



Product Name:YJHLV82(ACWU90)



ZB-ACWU90(-40) is a highly flexible self-locking aluminum armored,PVC out sheath 90℃ XLPE waterproof insulated single core or multi-core low smoke and free halogen Grade B cable.For it has PVC outer sheath of Grade FT4, ZB-ACWU90(-40) reduces the difficulty in duct wiring and labor cost.The cable has been assembled with highly flexible self-locking aluminum armor and sealing PVC our sheath,and there is no need to conduct the procedures such as duct and its accessories and manual intensive wire drawing,threading and pipe formation. ZB-ACWU90(-40) passed the CSA certification.It can be applied to lay open wiring and buried wiring in dry and humid environment and also in District 1 and District 2 Grade 1 dangerous environment and Grade 2.3 dangerous environment.Trestle,bracket,tray and cable gripper can be used for exposed laying indoor,and direct-buried,cable trench,cable tunnel and so on for out door.There is calibration marks on ZB-ACWU90(-40) per meter so as to ascertain the cable length accurately.It is in great compliance with the testing item standards IEC60502.1 and GB 12706.1.





Model Rated Voltage

0.6/1 8.7/10

8.7/15 26/35



Nominal Cross Section

Cores No.

Nominal Cross Section

Cores No

Nominal Cross Section

Cores No

YJHLV22 10~500 1,3,4,5

3+1

3+2

4+1 25~400 1,3 50~400 1,3

YJHL8 10~400 1,3,4,5

3+1

3+2

4+1 25~400 1,3 50~400 1,3

YJHLV8 10~400 1,3,4,5

3+1

3+2

4+1 25~400 1,3 50~400 1,3

YJHLV82 10~400 1,3,4,5

3+1

3+2

4+1 25~400 1,3 50~400 1,3
