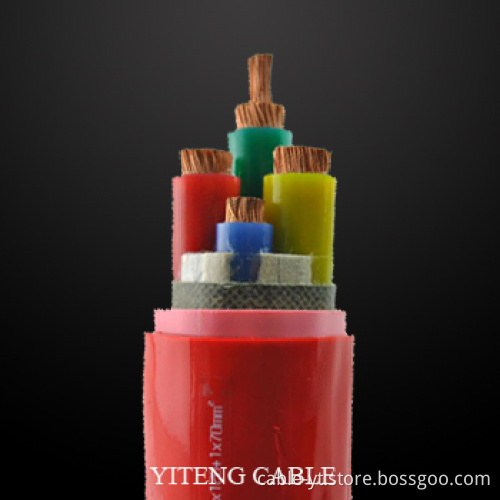

Silicone Rubber Insulated Cable



Operating Characteristics:

1.1 The ambient temperature : -60 deg.~+180 deg.

1.2 the operating temperature should not be higher than +180deg.

1.3 The ambient temperature under installation , should not be below -25 deg.

1.4 mini bending radius: non-armoured cable≥10 times of the cable diameter

1.5 Rated voltage U0/U 450/750V 0.6/1KV







Usage

It is used among all kinds of movable electrical equipments and tools in petroleum ,chemistry,powergenerating and metallurgy industries under high,low temp and acid alkali ,oil, water and corrosive circumstance at rated voltage up to 0.6/1kv



Types and Description





TYPES

Name

Main Usage

Specification (core)

Nominal Cross Section(mm2)



YGZ-450/750

Medium-sized silicon rubber insulated heat resistant ,corrosion resistant,oil resistant flexible cable

Used among all kinds of movable electric equipment and tools with high temperature 2,3,4,5,7,

10,12,19,24,30,

37,44,48,54,61 0.75~2.5



YGVFZ-450/750

Medium-sized silicon rubber insulated NBR sheathed heat resistant ,corrosion resistant,oil resistant flexible cable



YGC-600/1000

Heavy-duty silicon rubber insulated heat resistant ,corrosion resistant,oil resistant flexible cable

Used among all kinds of movable electric equipment and tools with high temperature,,able to bear larger enternal mechanical force 2,3,4,5 4~240



YGVFC-600/1000

Heavy-duty silicon rubber insulated NBR sheath ,heat resistant ,corrosion resistant,oil resistant flexible cable



YFGC-600/1000

Heavy-duty F46 fluorine insulated silicon rubber sheath ,heat resistant ,corrosion resistant,oil resistant flexible cable
