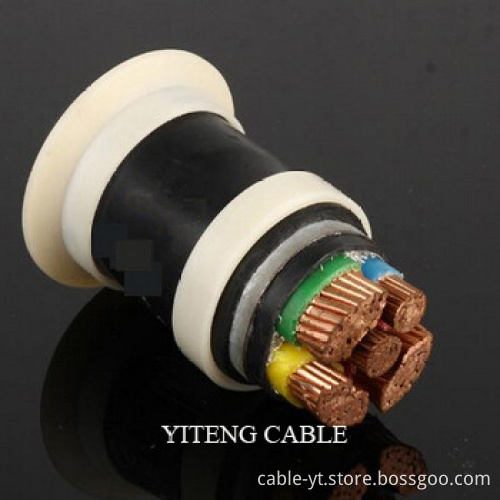

0.6/1KV Copper XLPE Power Cable with Steel Tape Armour







Product Standards



The product according to GB/T12706 " rated voltage 35KV and below copper, aluminum plastic insulated power cables " standards, while also based on user needs by the International Electrotechnical Commission standard IEC, British Standards , the German standards and U.S. standards.



Scope



This product is suitable for frequency 0.6/1KV and below rated voltage distribution networks or industrial installations in fixed installations.



Use features



Rated power frequency voltage U0 / U is 0.6/1KV.



Allow cable conductor maximum temperature is 90 ℃.



Short (the longest duration of no more than 5s) conductor temperature does not exceed 250 ℃.



The ambient temperature should not be less than 0 ℃.



Cable bend radius of not less than 15 times the cable diameter.







Description

Type Description No. of cores Nominal cross section of conductor

YJV22 Copper conductor/XLPE insulation/Steel Tape Armoured/PVC outer sheath Power Cable 1, 2, 3, 4, 3+1,

5, 4+1, 3+2 1.5~800mm2

YJV23 Copper conductor/XLPE insulation/Steel Tape Armoured/PE outer sheath Power Cable 1, 2, 3, 4, 3+1,

5, 4+1, 3+2 1.5~800mm2

ZA-YJV22 ZB-YJV22 ZC-YJV22 Copper conductor/XLPE insulation/Steel Tape Armoured flame-retardant Power Cable 1, 2, 3, 4, 3+1,

5, 4+1, 3+2 1.5~800mm2

WDZA-YJY23 WDZB-YJY23 WDZC-YJY23 Copper conductor/XLPE insulation/Steel Tape Armoured Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,

5, 4+1, 3+2 1.5~800mm2

NH-YJV22 Copper conductor/XLPE insulation/Steel Tape Armoured fire-resistant Power Cable 1, 2, 3, 4, 3+1,

5, 4+1, 3+2 1.5~800mm2
