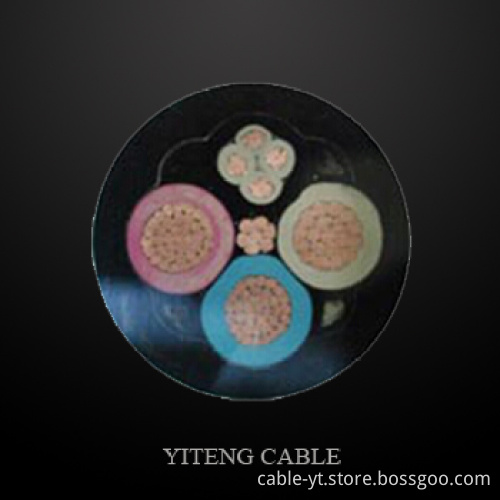

Flexible Rubber Cable for Mining Purposes

heat cable/tape

heat tracer cable/heat tracing

constant wattage heat tracer

self regualting heating cable

Standard of Product



The U-type cables are manufactured according to the standard of GB 12972-2008,while M –type cables are manufactured according to MT818-1999 and Q/1320282DCE037-2003, at the same time, they are also can be manufactured according to the standard of IEC, BS, DIN and AEIC.







Applications



Flexible rubber-sheathed cables for mining purposes AC rated voltage up to and including 6/10KV are suitable for mining purposes power device with moring installation.



Operating Characteristics



Rated voltage Uo/U: 380/660V 300/500V.660/1140V.1.9/3.3KV.3.6/6KV and 6/10KV.



Max. permissible operating temperature of the conductor: 65℃.



Min. permissible operating temperature of the conductor: -35℃.



The bending radius of cable should not be less than 6 times of the cable`s OD.



Cable TYPES Cable Designation

U

UY

MY

flexible cable for movable mining purposes

UP

UYP

MYP NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible screened cable for movable mining purposes

UC

MC NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible coal cutter cable

UCP

MCP

UCPQ NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible coal cutter screened cable

UZ

UZP

MZ MZP NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed drill cable for mining purpose

UYQ

MYQ NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible light –duty cable for mining purpose
