Universal Triple Clamps DN80-300

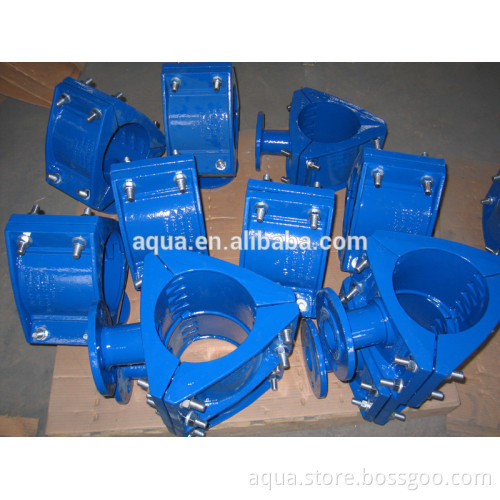

Manufacturer of Universal Dual clamps, Triple clamps,Tapping saddles,Under pressure Tee With certificate of ISO9000,WRAS and NSF for epoxy powder.   Triple Clamp(Three-Piece Clamps)
1. product description:   # Pipe repair clamp for the quick,safe and permanent repair in the drinking water sector.   # Three-piece design,preferably made from ductile cast iron.   # Nominal SIzes: DN40/50/65/80/100/125/150/200/250/300   # Pressure: PN10/16   # All the clamps are designed to allow installation without needing to turn off or to reduce the water pressure in the pipes.     # Outlets: Female threaded or flanged outlets PN10/16 2. Materials:     # shales made from Ductile cast iron.     # Coating: Epoxy coating min.250um     # Sealing: EPDM     # Screwed connections: galvanized steel( stainless steel as optional) 3. Dimension :     DN       Tube range      40         47-57      50         58-68      65         74-85      80          88-99      100        107-119       150        157-171       200        219-226       250        270-276       300         320-328    OTHER SERIES PRODUCTS:
