Polyester Spiral Mesh Conveyor Belt

$1.98

1-9999 square meter
$0.36

≥10000 square meter

Min. Order:: 1 square meter

Min. Order:: 1 square meter

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

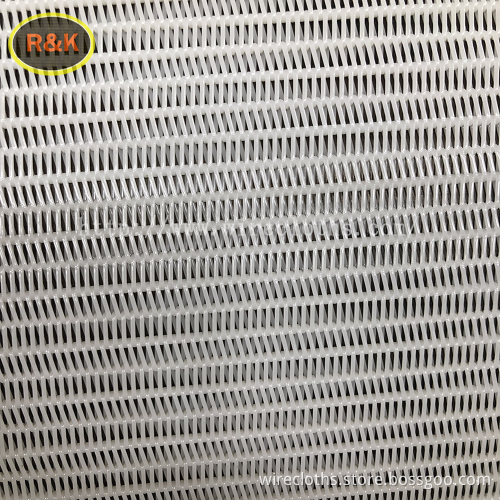

spiral mesh conveyor belt :

Material: Polyester, acid-resisting, alkali-resisting, high temperature resistanting

color: white and blue

Application:

Polyester spiral dryer fabrics is suitable for the dryer section of the paper machine ,printing and dyeing machine and horizonal belt washer ,also for the coal washing. It has many advantages,such as---- used conveniently,repaired easily, having

long lifetime,cheaper than Polyester weaving dryer fabric.

Type	Specification of single loop mm	Monofil diamater mm		Strength N/cm	Thickness mm	Weight of mesh m²kg	Air permeability m³/m²h
Type	Specification of single loop mm	Spiral loop monofil	Threading	Strength N/cm	Thickness mm	Weight of mesh m²kg	Air permeability m³/m²h
Super loop	4.8X10	0.9	1.1	2300	3.03	1.64	21000
Large loop	3.8X7.0	0.68	0.9	2000	2.45	1.40	18000
Medium loop	3.5X6.0	0.68	0.9	2000	2.45	1.31	16000
Small loop	3.2X5.2	0.5	0.8	1800	1.87	0.97	15000
