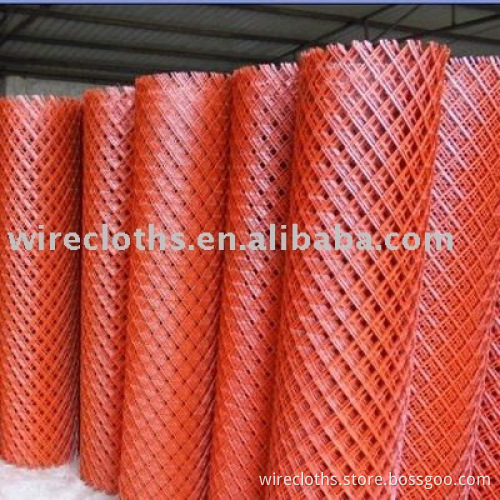

Expanded Wire Mesh

Specifications Expanded Wire Mesh

Made of superior quality steel sheets.

With the widen used and long time age in building and indutrial.

Expanded Wire Mesh Materials:Low carbon steel, stainless steel, aluminum, copper, nickel metal plate etc. Weaving and features:Stamping, stretch, beautiful and durable.
Surface treatment:PVC jinsu (package, plastic spraying, plastic coated), galvanized, electro-galvanizing, etc.
Steel nets USES:
Mainly used in civil engineering and construction of cement, mechanical equipment of the protection, handicrafts manufacturing, high-grade speakers nets. Highway barrier, sports venues, road net belt more fencing. Heavy plate mesh is used for heavy mechanical pedal mesh, boiler, mines, locomotives and tonner steamship working platform, escalator, aisle. Also can be used in construction, highway and bridge reinforcement in doing. Now due to technology and further improve steel nets, can not only in a metal plate processing, but also can be processed on paper, paper filter product is superior materials. Nowadays, the most suitable for use in railway hulanwang material is steel nets! Pensu steel nets

Specification of Expanded Metal Mesh
Sheet Thickness	Opening in Width mm	Opening in Length mm	Stem	Roll Width m	Roll Length m	Weight kg/m2
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

We can supply other specifications according to the customer's requirement.
