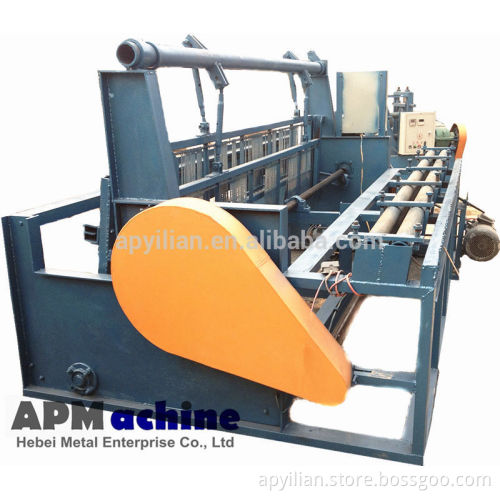

2014 Semi-automatic Crimped Wire Mesh Machine for sales

Specifications 2014 Semi-automatic Crimped Wire Mesh Machine for sales diameter:1.7-6mm

Mesh opening:>4mm

30 to 50 times per minute

2014 Semi-automatic Crimped Wire Mesh Machine for sales  Raw material: stainless steel wire, 65 mn, # 65, # 45, # 40, low carbon steel Q235, Q195, galvanized iron wire (65 mn is the hardest and the most soft Q195)
Weaving method: first, after rolling manually send diameter, hand into the weft wire, weaving machine.Applicable to 1.7 mm to 6 mm the following wire weaving, simple operation, no broken weft broken size.The new production with high efficiency, stable mechanical properties, etc.Products include wire rod crimped wire mesh crimped wire and so on

Wire Dia.	Weaving width	Weight	Size	Driving power	Power	Wire feed speed
(mm)	(m)	(tons)	(m)	(kw)	(V)	(mm)
1.7-6mm	2.5	2	2.2 x 4.5 x 2.3	1	380	30-40
