centrifugal glass wool pipe

Specifications Glass wool pipe insulation

1.glass wool pipe cover

2.density 48-80kg/m3

3.thickness 25-100mm

4.with/wihtout Alu. foil

1. Breaf introduction of our glasswool pipes:    e The cylindrical heat preservation pipe materials produced with our glass wool by formation through curing by applying pressure and heat after applying thermosetting cement are widely used for thermal insulation and heat preservation of thermal piping, cold water and hot water piping and steam piping in electric power, petroleum, chemical industries. centrifugal glass wool pipe, fiber glass wool pipe, glass wool tube centrifugal glass wool pipe, fiber glass wool pipe, glass wool tube 2. Distinctive advantages of our glasswool pipes:  centrifugal glass wool pipe, fiber glass wool pipe, glass wool tube  •  Sound absorption and noise reduction; it can effectively prevent syntony.
 •  Light materials; easy for installation.
 •  Antisepsis, ageing resistance and anticorrosion, ensuring a healthy environment.
 •  Low moisture absorption; stable physical properties.
 •  Low thermal conductivity; high heat preservation.
 •  Grade A1 fireproof; incombustible permanently.
 •  Strong resistance to extrusion and impact. centrifugal glass wool pipe, fiber glass wool pipe, glass wool tube 2 3. Technical Parameters 3 3

Density		45-100Kg/m3
Shell Length		1000mm
Pipe shell diameter		18-630mm
Shell Thickness		30-150mm
R-value		R1.3-5.0
Thermal Conductivity		0.035w/m.k
Working Temp		-120 to 450degree
Ranking Fire		A1
Dimensional	at 70	1%
	At 70&90% relative humidity	1%
Water absorption	in 24 hours short term	0.9 Kg/m2
	in 48 hours long term	2.8 Kg/m2
Resistant to water vapor		7.00 MN.s.g.m

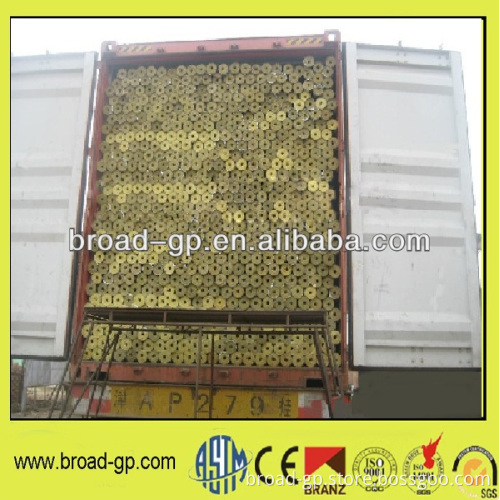

3 4. Onsite installation  4 1 our product is widely used as the heat insulation and sound absorption materials in building field and heat preservation of pipes, wires and so on. 5 5.   Our products with quality certificates: 1 5 Welcome you contact us for formal business negotiation anytime, staffs of broad  group will always serve you sincerely with their best !
