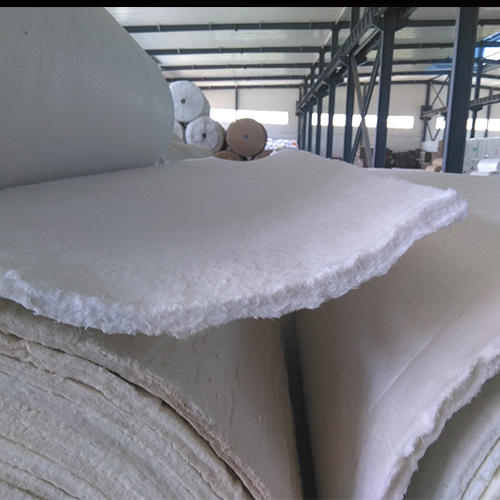

Hydrophobic Pyrogel XTF Aerogel Insulation Material

Hydrophobic Pyrogel XTF Aerogel Insulation Material

Hydrophobic Pyrogel XTF Aerogel Insulation Material

1, Excellent thermal insulation effect. The thermal insulation of Silica Aerogel Insulation blankets is 2-5 times that of traditional insulation materials, and the theoretical service life according to Arrhenius experiment is 20 years. Almost the same life with buildings.

2, Reduce the insulation thickness. Silica Aerogel Insulation blankets achieve the same thermal insulation and are only a fraction of the thickness of traditional materials. Heat loss after insulation, space utilization. And at high temperatures, the above performance advantages more pronounced.

3, Hydrophobic and fire resistance. Silica Aerogel Insulation blankets is absolutely hydrophobic, which can effectively prevent moisture from entering the pipe and equipment. At the same time with the building A1-level fire performance, and aerogel unique three-dimensional network structure to avoid the use of other insulation materials in the long-term high temperature sintering deformation, settlement and other insulation effect decreased significantly.

4, construction convenience. Silica Aerogel Insulation blankets light, easy to cut, sewn to adapt to a variety of different shapes of pipe, equipment insulation, and the installation of less time and manpower.

5, save shipping costs. Smaller package volume and lighter weight can greatly reduce the transportation costs of insulation materials.

Aerogel Thermal Insulation Blanket Specification & Properties:

• Aerogel Thermal Isolation Material: Nano Silica Aerogel
• Thickness: 3mm,5mm, 6mm, 10mm,
• Color: White
• Width: 1500mm; Length: standard length is according to thickness.
• Aerogel Thermal Isolation Blanket Density: 180 ~ 220kg / m³;
• Aerogel Thermal Isolation Blanket Applicable temperature: -200 ℃ -  +1200 ℃
• hydrophobic: absolutely hydrophobic (350 ℃ below);
• Aerogel Thermal Isolation Blanket Thermal Conductivity: 0.012 - 0.018w / m · k (at 25 ℃)
• Low Temperature Bending: 99%
• Breaking Elongation: 65%
• Bending Strength: 45KP
• Compressive Strength: 32N
• Thermal Conductivity: 0.012 - 0.018w/mk (At 25)

Aerogel blanket Application:

Aerogel blankets can be widely used in steam boilers, thermal oil furnace, electromagnetic induction heating furnace, aluminum industry heating furnace, insulation furnace, and so on. Insulation furnace industry owners are concerned about the furnace heat insulation. If the furnace heat insulation blanket effect is good, the company can save a lot of energy consumption.

3mm 5mm 6mm 10mm Aerogel Blankets Used project

(1)Pipe insulation

(2) Equipment insulation

(3) Tank thermal insulation

(4) Vehicle insulation

(5) High-end building, roof and floor heating insulation

(6) Chemical, biological pharmaceuticals pipeline insulation

Advantages of Aerogel blankets

1. Lower total installed cost compared to traditional passive fire protections
2. Faster and easier application gives immediate passive fire protection-no curing or drying time needed
3. Can be installed in all weather conditions
4. Easily removed and reused after inspection
5. Hydrophobic and breathable; resists liquid water and the damaging effects of CUI/CUF
6. Lightweight, durable design allows for pre-insulation
7. Suitable for applications from ambient to 650°C/1200°F
