Product Description

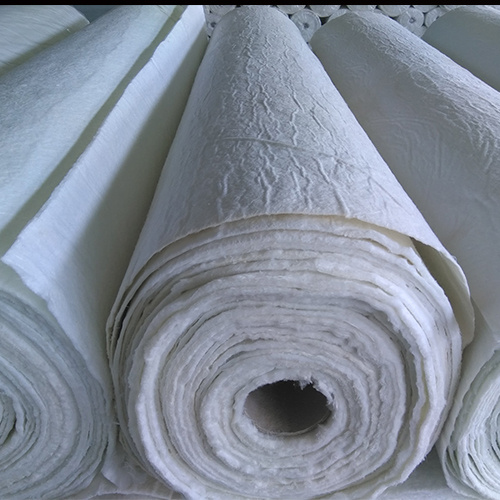

Cryogenic insulation Cryogel Z Aerogel Blanket

As a thermal insulation material, the fine structure of the nanostructured silicon aerogels effectively limits the propagation of localized thermal excitation with a solid state thermal conductivity 2-3 orders of magnitude lower than the corresponding glassy material. Nanopores inhibit the contribution of gas molecules to heat conduction. Silicon Aerogel Pipeline Insulation Materials refractive index close to l, and the infrared and visible light annihilation coefficient ratio of 100 or more, can effectively penetrate the sun, and prevent the ambient temperature infrared heat radiation, as an ideal transparent thermal insulation material , Has been applied in solar energy utilization and building energy saving. By means of doping, the radiative heat conduction of the silicone Aerogel Pipeline Insulation Materials can be further reduced.

Aerogel Thermal Insulation Blanket Specification & Properties:

Aerogel Thermal Isolation Material: Nano Silica Aerogel
Thickness: 3mm,5mm, 6mm, 10mm,
Color: White
Width: 1500mm; Length: standard length is according to thickness.
Aerogel Thermal Isolation Blanket Density: 180 ~ 220kg / m³;
Aerogel Thermal Isolation Blanket Applicable temperature: -200 ℃ - +1200 ℃
hydrophobic: absolutely hydrophobic (350 ℃ below);
Aerogel Thermal Isolation Blanket Thermal Conductivity: 0.012 - 0.018w / m · k (at 25 ℃)
Low Temperature Bending: 99%
Breaking Elongation: 65%
Bending Strength: 45KP
Compressive Strength: 32N
Thermal Conductivity: 0.012 - 0.018w/mk (At 25)

Why choose Aerogel Blankets Materials As the Insulation materials, please check the excellent Insulation performance of Silica Aerogel Insulation Blanket.

1. Aerogel felts have very good system stability

Silica aerogel composite Insulation materials belongs to the inorganic insulation material. The aerogel composite Insulation materials has high stability, no deformation due to the external environment, and no cracking, falling off and water seepage of the traditional organic insulating material.

2. Aerogels Fabrics have ultra-thin insulation system

Silica aerogel insulation material total thickness of the traditional insulation material 1/4, 10mm Silica aerogel composite insulation blanket can replace 70mm EPS, thermal insulation performance is 4 to 10 times the traditional insulation materials, Silica aerogel composite felts with light weight per unit area, direct paste when use it, without anchoring, it can be shorten the construction period to save costs.

Aerogel blanket Application:

Aerogel blankets can be widely used in steam boilers, thermal oil furnace, electromagnetic induction heating furnace, aluminum industry heating furnace, insulation furnace, and so on. Insulation furnace industry owners are concerned about the furnace heat insulation. If the furnace heat insulation blanket effect is good, the company can save a lot of energy consumption.

3mm 5mm 6mm 10mm Aerogel Blankets Used project

(1)Pipe insulation

(2) Equipment insulation

(3) Tank thermal insulation

(4) Vehicle insulation

(5) High-end building, roof and floor heating insulation

(6) Chemical, biological pharmaceuticals pipeline insulation

Advantages of Aerogel blankets

Lower total installed cost compared to traditional passive fire protections
Faster and easier application gives immediate passive fire protection-no curing or drying time needed
Can be installed in all weather conditions
Easily removed and reused after inspection
Hydrophobic and breathable; resists liquid water and the damaging effects of CUI/CUF
Lightweight, durable design allows for pre-insulation
Suitable for applications from ambient to 650°C/1200°F
