10mm Pyrogel XTF Aerogels INDUSTRIAL INSULATION
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 50 Square Meter
- Min. Order:
- 50 Square Meter
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | One high container per 10 days |
| Supply Ability: | One high container per 10 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ASTM1728 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Shanghai |
5mm FLEXIBLE Space loft Aerogel pipe insulation products
About aerogels material
Aerogel is a material with an air content of 99.8%. Aerogel have porous solid networks containing cavitation, which occupies most of the space in the material. Because of the lack of solid material, Sale aerogel have almost no weight. Huatao Group use Aerogel to make the thermal insulation blanket to keep the temperature for all industrials.
Pyrogel XTF Aerogel Insulation Blanket For High Temperature Specification
Thickness:3mm,6mm,10mm
Roll Length:36M or as request
Width:1500MM or as request
Use Temperature:-50~650 C
Dimensional Stability(GB/T8811):1%
Reshrinking Temperature(GB/T11835):800 C
Compressive Property(GB/T13480):@10%,20Kpa
@25%,150Kpa
Flame Rating(GB/T8624):A
Tensile strength(GB/T17911):1000KPa
Thermal conductivity(GB/T 10295):25C,0.020W/(M·K)
200C,0.028W/(M·K)
300C,0.035W/(M·K)
400C,0.044W/(M·K)
500C,0.069W/(M·K)
650C,0.095W/(M·K)
The advantages of aerogel insulation materials are
Compared with the traditional aerogel insulation material, the thickness of the insulation layer can be greatly reduced, the heat loss is reduced, and the energy saving effect is excellent.
The aerogel insulation material has good structural strength, high compressive strength, stable performance and long service life.
The aerogel insulation material has good waterproof effect and prevents pipeline corrosion to a maximum extent.
To reduce installation time and labor, it is easy to tailor material and installation according to complex shape, curvature and space constraints.
The amount of aerogel insulation material can reduce the amount of external protective layer and reduce the cost of transportation and storage.
The combination of aerogels and other traditional materials provides a more economical insulation scheme for the users.
Pyrogel XTF Aerogel Insulation Blanket For High Temperature Application

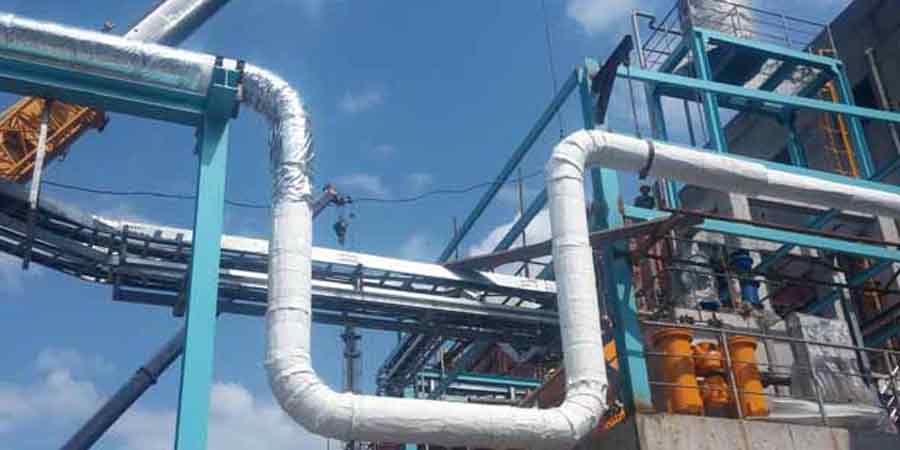

(1)Pipe insulation
(2) Equipment insulation
(3) Tank thermal insulation
(4) Vehicle insulation
(5) High-end building, roof and floor heating insulation
(6) Chemical, biological pharmaceuticals pipeline insulation
Pyrogel XTF Aerogel Insulation Blanket For High Temperature Feature
It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
