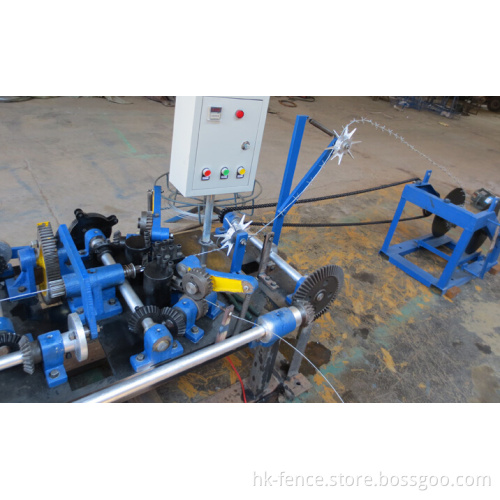

Double Twist full Automatic Barbed Wire Machine

  1. Feature

Composition
Be made up of wire and accept wire twisting the part, and form a complete set of four wire plate,

Materials:
High quality low carbon steel wire (electric galvanized, hot galvanized, plastic coated, plastic spraying) wire, etc

Characteristics
The parts of the machine work coordinately, this machine is mainly used for the production of various strands of barbed wire mesh, the material should comply with the stability, flexible and reliable operation

The machine move smoothly, low noise, high safety, save energy consumption, high production efficiency, and adopts advanced electronic counting control

2. Specification of barbed wire making machine

Item	Units	Parameters
Motor	KW	3
Main drive shaft speed	r/min	402
Unit wire diameter	mm	2.2-3.0
Barbed wire diameter	mm	1.8-2.2
Barbed distance	mm	76(3inches) 127(inches)
Twist number	psc	3.5
Theoretical yield	kg/h	70
Total weight	kg	1200
Dimension of main part	mm	1950 x 950 x 1300
Dimension of take-twisting part	mm	1760 x 550 x 760


3. The package of barbed wire making machine
1. In pallet,
2. In nude packing
