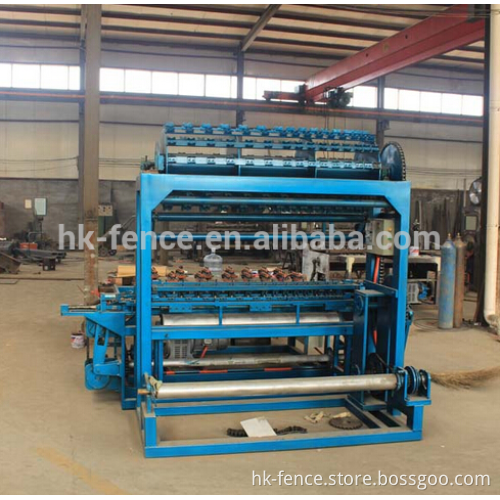

2000mm full Automatic Field Fence netting Machine

  2000mm full Automatic Field Fence netting Machine Description of the machine It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive.Products are neat and beautiful, diverse specifications. Parameter of the machine

Type	1422mm	1880mm	2000mm	2400mm
motor	5.5kw	7.5kw	7.5kw	11kw
Dimension	2.8*3.2*2.4(m)	3.3*3.2*2.4(m)	3.4*3.2*2.4(m)	3.9*3.4*2.4(m)
Efficiency	≤45row/min	≤45row/min	≤45row/min	≤45row/min
Twine diameter	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)
Side wire diameter	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)
Voltage	380v	380v	380v	380v
Weight	3.5T	3.8T	4.0T	4.5T
Wrap number	11	13	18	23
Minimum weft opening number	2	4	4	6
Weft number	10	12	17	22
