Haotain heavy galvanized welded stone basket wall factory

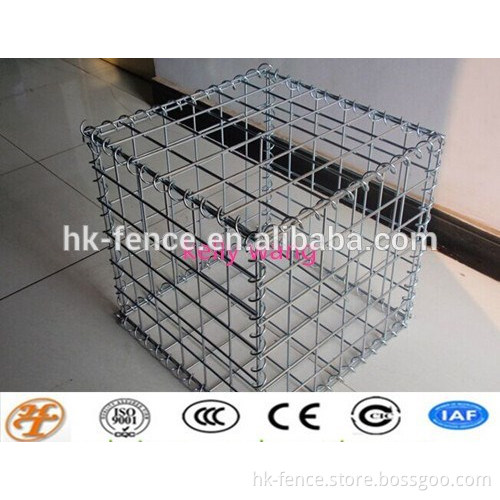

Haotain heavy galvanized welded stone basket wall factory   Haotian factory is specialized in mesh fence products for 19 years including stone basket wall,temporary fence,crowd control barrier,horse fence,dog kennel,etc.We export more than 50 containers every month including Canada,America,Australia,the United Nations,etc. Welcome to contact us to inquire,we will try our best to serve you.   Gabion box is devided into two types--welded gabion and hexagonal gabion.   Welded stone basket wall

Length (m)	Width   (m)	Height   (m)	Wire diameter (mm)         EN/BS1052			Mesh aperture (mm)	diaphragm
			Mesh wire	Selvedge wire	helical spiral
1.0	1.0	0.5 or1.0	2.7-4.5	Thicker 1mm than mesh wire	4mm	50*100, 100*100, 50*70, 76*76	no
1.5	1.0	0.5 or1.0					no
2.0	1.0	0.5 or1.0					1
3.0	1.0	0.5 or1.0					2
4.0	1.0	0.5 or1.0					3
5.0	1.0	0.5 or1.0					4

 How to install welded gabion box?
Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Gabion box is filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.   Hexagonal gabion box

Direct factory pvc coated gabion box/gabion wire mesh box/welded gabion box
Mesh Size (mm)	Mesh Wire Diameter (mm)	Corner Wire Diameter (mm)	Binding Wire Diameter (mm)	Max. Width(m)
60*80	20.-2.8	3.0-4.0	2.0-2.2	4
80*100	2.0-3.6	3.0-4.0	2.0-2.2	4
80*120	2.0-3.6	3.0-4.0	2.0-2.2	4
100*120	2.0-3.8	3.0-4.0	2.0-2.2	4
100*140	2.0-3.8	3.0-4.0	2.0-2.2	4
120*150	2.0-3.8	3.0-4.0	2.0-2.2	4
160*200	2.0-4.0	3.0-4.0	2.0-2.2	4
200*220	2.0-4.0	3.0-4.0	2.0-2.2	4

  Features of Gabion Box:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Less transport freight. It can be folded together for transport and further installation.   Applications of Gabion Box:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil.
Protection engineering of seaside area.
