hot-dipped galvanized Welded Mesh Gabions 2*1*1m

welded gabion box     Welded gabion is made from rigid, lightweight, galvanized steel mesh that allows for machine filling, holds the alignment of the face.
Technical Note:
* Mesh Size: mesh openings should be square of nominal dimension of 76.2mm on the grid.
* Mesh Wire: nominal wire diameter should be 3.0mm.
* Standard Sizes: 2mx1mx1m, 2mx 1mx0.5m, 1mx1mx1m, 1mx1mx0.5m, 1.5mx1mx1m.
* Surface Treatment: Zinc coating or 95% zinc 5% aluminium coating for corrosion resistance.
* Assembly: assembled with stainless steel clips connecting side panels and diaphragms to the base panel.
* Joining: welded gabion should be provided with lacing wire or spiral wire for site assembly, which should be of minimum wire diameter 2.2mm for final joining.

Applications:

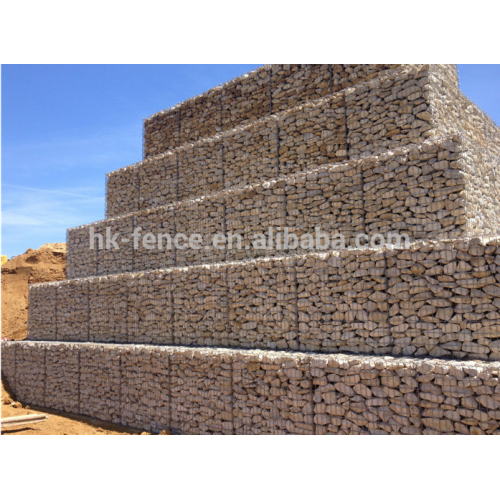

1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection   General Specifications of Welded Gabion:

sizes of gabion	amount of diaphragm	Standard of gabion
L*W*H(cm)		300*100	300*50	200*100	200*50	150*100	150*50	100*100	100*50	50*50	150	100	50
300 x 100 x100	0	4						2			8	8
	2	4						4			8	16	4
300 x 100 x50	0	2	2						2		8	4	4
	2	2	2						4		8	8	8
300 x 50 x100	0	2	2						2		8	4	4
	2	2	2						4		8	8	8
300 x 50 x50	0		4							2	8		16
	2		4							4	8		8
200 x 100 x100	0			4				2				16
	1			4				3				20
200 x 100 x50	0			2	2				2			12	4
	1			2	2				3			14	6
