heavy galvanized stone cage for retaining wall

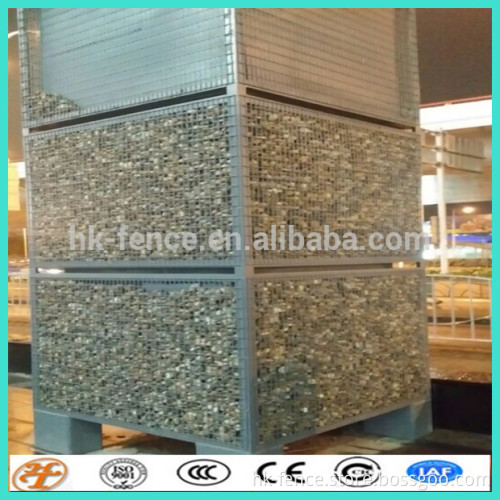

          heavy galvanized stone cage for retaining wall    Company Information        Company profile     Haotian Hardware Wire Mesh Products Co.,Ltd is specialized in the production of Temporary Fence series(swimming pool panel,temporary steel hoarding,fence clamp,fence feet,fence barce,etc) Crowd Control Barrier,Mesh Fence,Horse Panel,DogKennel,Gabions,Iron Decorative Mesh Fence with nice design,etc.       Product Description  1.gabion box description      Gabions are free-draining walls constructed by filling large baskets with broken stone. The baskets are made from galvanised steel mesh, woven strips, or plastic mesh. The permeability and flexibility of gabions make them suitable where the retained material is likely to be saturated and where the bearing quality of the soil is poor.  2.Gabion  box material   (1) Galvanized steel wire: diameter 2.0mm-4.0mm, tensile strength >380Mpa, zinc:200g / m2.   (2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.   (3) coated galvanized steel wire: low carbon steel wire, pvc coated.   (4) Zinc 5% Aluminum       2.Gabion wire mesh box material (1) Galvanized steel wire: diameter 2.0mm-4.0mm, tensile strength >380Mpa, zinc:200g / m2. (2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa. (3) coated galvanized steel wire: low carbon steel wire, pvc coated. (4) Zinc 5% Aluminum   3..Gabion box tie wire diameter:2.0mm-2.2mm;      edge wire diameter thicker 0.5-1.0mm than mesh diameter.     4.Gabion box sizes:                             2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,2m x 1m x 0.5m,4m x 1m x 0.5m,                                  and Custom orders available.   5.Gabion box Hole size:                60 x 80mm, 80 x 100mm, 80 x 120mm, 100 x 120mm, 120 x 150mm.   6.Gabion box specification:

Size of the Gabions Basket				Remarks	Tolerance
Length(M)	Width(M)	Height(M)	Unit	Cubage	Width:5%  Length:5%  Height:3%
2.00	1.00	0.30	1	0.60
3.00	1.00	0.30	2	0.90
4.00	1.00	0.30	3	1.20
2.00	1.00	0.50	1	1.00
3.00	1.00	0.50	2	1.5
4.00	1.00	0.50	3	2.00
1.00	1.00	1.00	0	1.00
1.50	1.00	1.00	0	1.50
2.00	1.00	1.00	1	2.00
3.00	1.00	1.00	2	3.00
4.00	1.00	1.00	3	4.00

    7.Gabion box process     wire drawing---galvanized--- galvanized after weaving or galvanized before weaving.           8.Gabion box application      Gabions are used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls. They can be manufactured in welded mesh or woven wire.             Packaging & Shipping  9.Gabion box packaging      50-100 gabion wire mesh /per bundle,wrapped with 2 to steel strips            Our Services About us: Haotian export a large quantity of mesh fence to Australia,America,Russia,Poland,France,German and Denmakr,etc. We are ready to offer you Best Products in reasonable price all the time,waiting for hearing from you.  Any question,pls contact me!
