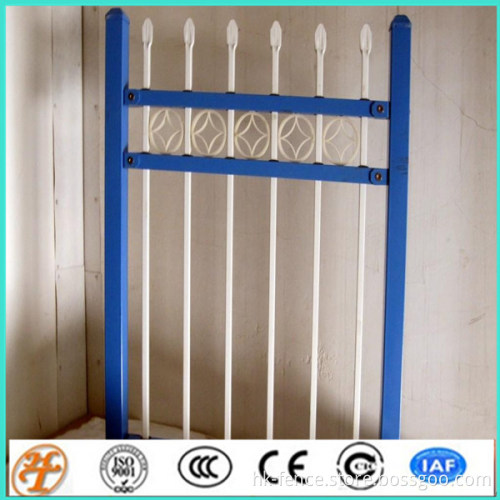

Beautiful design models of gates and wrought iron picket fencing

      Beautiful  design models of gates and wrought iron picket fencing                 Product Description   1.Description of models of gates and wrought iron picket fencing   Palisade fence is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.       2.Common Specifications of  Europe picket fencing 1> Pales Width: 65-70mm Thickness: 2.0-3.0mm Finishing: galvanized and polyester powder coated or hot dipped galvnaized Head: single point, triple point Height: 1.2m-3.0m 17pcs/set       2> Rail Size: 50x50mm, 40x40mm (Angle Iron) Thickness: 5.0-6.0mm Finishing: galvanized and polyester powder coated or hot dipped galvanized Holes: with 19 holes drilled on one edge side Length: 2.7m Screw Size: M8   3> Post H Post Size: 100x68mm, 100x55mm, 120x74mm  Square Post Size: 60*60mm, 80*80mm Thickness:  3.5mm-5.00mm Finishing: galvanized and polyester powder coated or hot dipped galvanied Head: cut sharp Height: on the basis of pale height (1.2-3.0m)         3. Specifications of  iron palisade fence

Ornamental fence/iron fence
material	low-carbon steel wire (Tensile strength:480MPa )
Ornamental fence(iron fence)  surface treatment	electro galvanize	1. Surface smooth,and bright,zinc coating:20-30g/m2 2.It is easy to rust.
	Hot galvanized	1.surface zinc is thick, can reach about 500g/m2, don’t easy to rust ,  2.the surface have zinc knot, not smooth.
	powder coating	1.Surface smooth,and bright,
	Pvc coating	1. Pvc coating thickness,High corrosion resistance
Ornamental fence(iron fence)
Type	Horizontal pipe	Vertical pipe	Post size	Length	height
F15	32mm*32mm*1.2mm	16mm*16mm*1mm	50*50mm*1.5mm	3m	1.8m
F16	40mm*40mm*1.2mm	19mm*19mm*1mm	50mm*50mm*1.5mm	3m	1.5m
W17	45mm*45mm*1.2mm	25mm*25mm*1mm	60mm*60mm*2mm	2.5m	1.2m
W18	50mm*50mm*1.2mm	30mm*30mm*1mm	60mm*60mm*1.5mm	2.5m	1.8mm
W19	30mm*30mm*1.2mm	19mm*19mm*1mm	50mm*50mm*1.5mm	3m	1.5m
If you need special specifications,We can produce according to your requirements. Ornamental fence(iron fence)--Choose INNAER, we are the most professional and we can design for you.

      4.Istallation of  models of gates and wrought iron picket fencing                5.Features and Uses of  iron fence
(1) strong, durable and fulfils many demanding roles. (2)It is regularly used around industrial units, civic amenities, schools and other such applications where security is a major concern. (3)The security level of palisade can be increased by increasing the height of the fence, increasing the number of pales per panel, increasing the thickness of pale, adding a concrete plinth.   6.Connection of  iron fence Pale: 60mm wide x 2mm thickness x 2.4m high
Post: 50mm x 50mm x 1.6mm thickness x 2.95m high
Rail:  50mm x 50mm x 4.0mm thickness x 2.5m length (from post center to center)
Bolt: M8 and M12.
Finish: Galvanized with PVC coating.    Packaging & Shipping  7.Package of  iron fence metal pallet+paper carton +PVC film,as customer requirement standard iron pallet and plastic film       Our Services   About us  (1)  Haotian export a large quantity of mesh fence to    Australia,America,Russia,Poland,France,German and Denmakr,etc. (2)We are ready to offer you Best Products with reasonable price all the time. (3)Any inquiries,will be respond within 24 hours. Looking forward to hearing from you.       Company Information Company profile     Haotian Hardware Wire Mesh Products Co.,Ltd is specialized in the production of Temporary Fence series(swimming pool panel,temporary steel hoarding,fence clamp,fence feet,fence barce,etc) Crowd Control Barrier,Mesh Fence,Horse Panel,DogKennel,Gabions,Iron Decorative Mesh Fence with nice design,etc.              Any question,pls contact me!
