AISI304 stainless steel wire rope

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications AISI304 stainless steel wire rope

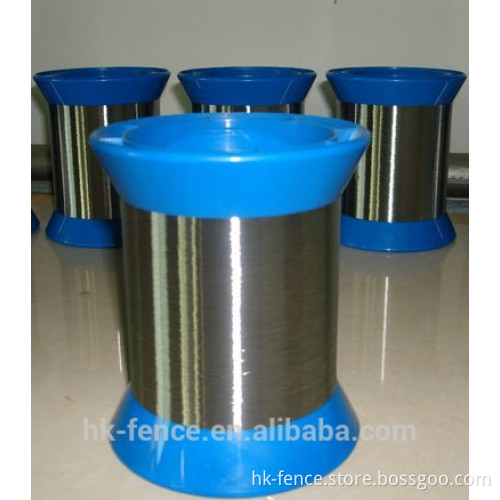

AISI304 stainless steel wire rope

Sizes of Stainless Steel Wire
Wire Diameter(mm)	Tolerance(mm)	Max. Deviation Tolerance (mm)
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002
0.090-0.109	+0.003 -0.002	0.002
0.110-0.169	±0.003	0.003
0.170-0.184	±0.004	0.004
0.185-0.199	±0.004	0.004
0.200-0.299	±0.005	0.005
0.300-0.310	±0.006	0.006
0.320-0.499	±0.006	0.006

Chemical composition of stainless steel wire
AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	>≤0.08	>≤1.00	>≤2.00	>≤0.045	>≤0.030	>8.00~10.50	>18.00~20.00	-
304H	>0.08	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.50	18.00~20.00	-
304L	>≤0.030	>≤1.00	>≤2.00	>≤0.045	>≤0.030	>9.00~13.50	>18.00~20.00	-
316	≤0.045	≤1.00	≤2.00	≤0.045	≤0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	>≤0.030	>≤1.00	>≤2.00	>≤0.045	>≤0.030	>12.00~15.00	>16.00~18.00	>2.00~3.00
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.030	≤0.60	16.00~18.00	-
430A	>≤0.06	>≤0.50	>≤0.50	>≤0.030	>≤0.50	≤0.25	>14.00~17.00	-
