Heating gas steam boiler

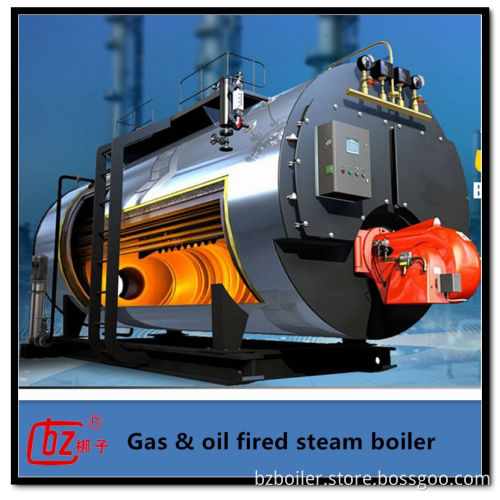

Heating gas steam boiler Specifications 1ton 2ton 3 ton 4 ton 6 ton 8ton 10ton 15ton 20ton steam boiler heavy fuel or gas -Complete control alarming indication system Low SO2 NOx emission, efficiency>93%     product description WNS steam boiler   I. The unique features of 3 ton 4 ton 6ton 10 ton steam boiler   1. It adopts wet back & three pass structure which ensures boiler safe operation and extend service life. 2. Boiler equips European Burner, fuel combustion can achieve automatic adjustment to save energy,  also decrease the dust emission & SO2 emission & NOx emission. 3. Boiler equips Energy Saver which can improve boiler thermal efficiency more than 2~3% & decrease  the temperature of exhaust smoke. 4. It’s suitable for heavy fuel (oil) & engine oil & waste oil & residuum ...   II. Why are you choice our 3 ton 4 ton 6 ton 10ton steam boiler ?   1. Lower dust emission & SO2 emission & NOx emission,   dust emission concentration < 30mg/m³   SO2 & NOx emission concentration < 18mg/m³   2. Boiler equips European Burner, fuel combustion can achieve automatic adjustment.   3. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.   4. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication ...   We also freely supply you a set of inner parts of Electric controller for standby.   5. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.   6. Comprehensive after-sales service.    We can design layout drawings of boiler system according to your actual requirement.   Also can dispatch engineer to guide installation & commissioning.               Technical parameters of natural gas or diesel fired steam boilers

Projects		unit	WNS1	WNS2	WNS4	WNS6	WNS10	WNS15	WNS20
rated evaporation		t/h	1	2	4	6	10	15	20
Nominal steam pressure		Mpa	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Nominal steam temperature		°c	194
Rated inlet water temperature		°c	20
body heating surface		m²	25.5	60	111	160	260	380	482
Economizer heating surface		m²	5	10	16	25	30	46	62
Design thermal efficiency		%	91.8
Design environment temprature		°c	20
Design blowdown rate		%	4
Net weight of boiler		t	6.5	9.8	14.8	20.7	30.4	43.3	50.4
operational water volume		t	3	5	7.5	10.7	16.7	25	31.5
full water volume		t	4	6.8	10	14.6	22.3	31.1	36.6
Fuel consumption	Natural gas	Nm3/h	75.4	149	298	447	743.6	1084.4	1444.3
	Diesel	kg/h	64	132	265	382	636	951	1267.6

    production courses   Company Showing   Company Introduction 1, Spirit: Supply Reliable & High Efficient Heating System. 2, Produce Capacity:  More Than 1000 Sets Of Boilers (5000 T/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, D2 Pressure Vessel Manufacturer. 3, Certification:All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 4, Business Promise:Each Boiler System Parts Is From First Class Brand All Over The World or China. 5, Quality Strict monitor. From The Material, Welding, To Finished Boiler Shipment; From Project Establishment, Drawing Design, To Final Audit. Advanced automatic welding with 100% passed penetrate X-Ray inspection. 6, User: We Are The Stable And Long Term Supplier Of Many Top 500 Groups All Over The World. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, Etc,. We are looking for long terms cooperation boilerusers,distributors, importers, agents worldwide!   Certifications customers Exhibition Customers:  Factory Visiting Customers   Our Services    Pre-sale service: 1.According to the customer needs to recommend relative models machine.
2. According to the customer's special requirements to customize equipments.
3. Our engineers will supply the site and equipment drawing.   After-sale service:
1. According to the purchase contract, our company can send engineers to help  installation.
2. The quality guarantee is 1 year, not including the wearing parts.
3. Collecting customer feedback, solve the real problems faced by customers.
4. Our company supply spare parts all the year round.  Our customers:    If any interest in our products, just please contact with me directly:     Name: Linda Xu   Skype: xuwenjuan86 Tel/whatsapp: +86-18630196461 Email: linda at bangziboiler.com
