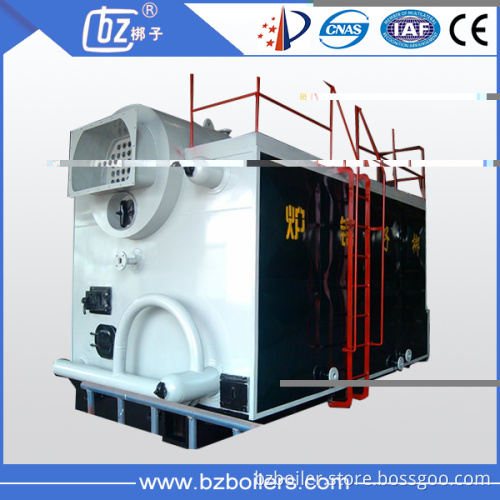

DZL coal fired hot water boiler for heating

Packaged 0.7mw to 4.2mw assembled 5.6mw to 29mw thermal power Coal fired hot water boiler

Boiler general description

1. Product description/name:   Packaged 0.7mw to 4.2mw assembled 5.6mw to 29mw thermal power coal fired hot water boiler

2. Rated capacity:  thermal power 0.7mw 1.4mw 2.8mw 4.2mw 5.6mw 7mw 10.5mw 14mw 21mw 29mw etc.

3. Rated working pressure: 0.7 Mpa, 1.0Mpa

4. Rated hot water temperature : 95°C or 115  °C

5.Fuel: coal or biomass

6.Model: DZL automatic chain grate coal fired hot water boiler

Boiler Applicable Industry/Function:

Function: washing, heating etc

Applicable Industry: greenhouse, house/apartment, hotel, school, large and medium-sized enterprise and company, factory, apartment and so on use it for heating,bathing and shower

Boiler Quality Assurance:

We Yuanda Boiler Factory is a more than 50years old factory with Stated qualification for boiler manufacturing and pressure vessel manufacturing.

Warranty

2years warranty to the boiler with full-life after-sales service

Spare parts Service

A full range of original equipment spares is immediately available for all Yuanda boilers

Remarks:

1. Boiler quality certificates, manufacturing and installation drawings, user manual etc.

2. Manufacturing code: GB

3. Price Term : FOB, CIF,  etc.

  DZL series coal fired hot water boiler technology parameter table     0.7MW coal fired hot water boiler detail infomation click here   1.4MW coal fired hot water boiler detail infomation click here   2.8MW coal fired hot water boiler detail infomation click here   4.2MW coal fired hot water boiler detail infomation click here   7.0MW coal fired hot water boiler detail infomation click here      water boiler process     Usage of hot water boiler : For central heating, dryer, laundry, hotel, school, greenhouse heating, etc.
    DZL coal fired hot water boiler features:   Water boiler  Optimum structural design with fire&water mixing tube make smaller boiler volume and can save 1/3 building cost of boiler house Water boiler  Spirally corrugated tubes achieve 1-2times higher heat transfer efficiency, and easy for maintenance Water boiler  New design and larger volume furnace enhance burning efficiency, also achieve lower requirements to fuel. Water boiler boiler New furnace with dust separation space make unburned falling fuel second burning, the sufficient combustion greatly enhance heat efficiency and save fuel and environment protection. Water boiler We improved the feed water equipment and steam division equipment, steam wetness is below 1%. Water boiler  Applied advanced water circulation technology, low requirements to water, effectively avoid boiler scale and impurities sediment, longer use life and easy maintenance.      Supply Cope of Hot Water Boiler:

Product name	Quantity (set)
1. Boiler main part	1
2. Forced fan	1
3. Induced fan	1
4. Electric control box	1
5. Valve & Gauge used on boiler main part	1
6. Speed reducer	1
7. Hot water pump	2
8. Smoke chimney	1
9. Smoke ducting	1
10. Fuel feeder system	1
11. Slag remover	1
12. Dust collector	1
13. Water softoner	1
14. Economizer	1
Other equipments is available, like Wet scrubber,  air-preheater, deaerator, pressure tank, condensed water recycling equipment, heat exchanger

      Packaging & Shipping Boiler main part in nude packing; accessories in wooden box      the factory     certificate   Enterprise Concept: Quality, Sincerity, Creditability      contact us skype: charliesun327 whatsapp:00+86+18630107521 cell:86+18630107521 email:charlie AT bangziboiler.com
