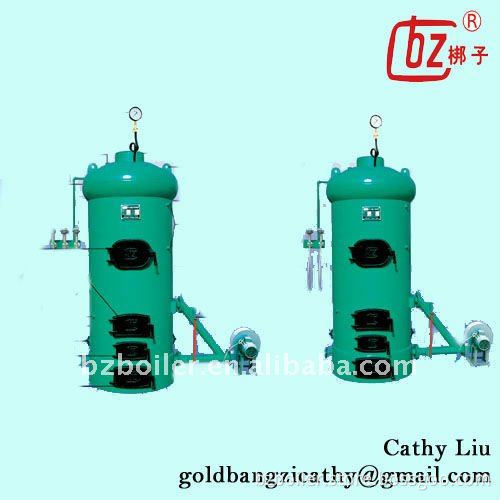

Vertical hot water boiler

Instruction:
1. Adding water to the system from the fill tank, 50% of the tank water is   appropriate, it can not be used without water. 2. Close the cleaning door, open the furnace door, cover the slag of 5 mm thickness on the grate, and put into tinder such as wood to ignite the coal. Then add more coal, at the same time add oxygen  from  lower to the upper of the wind (put the Secondary air into middle position modulation) until all the coal ignites  and  chimney stops smoking . 3. Raise the regulator, increase secondary air volume, lower it, increase first air volume. According to the different kind of coals, adjust volume of first and secondary air through the regulator, to achieve the purpose of smoke abatement. parameter

model	Rated thermal power (MW)	Heating area as reference(m2)	Appearance and size diameter*high
LSG(H)0.058-0.09-85/60-A2	0.058	500	800×1950
LSG(H)0.082-0.09-85/60-A2	0.082	700	900×2260
LSG(H)0.117-0.09-85/60-A2	0.117	1000	1000×2460
LSG(H)0.14-0.09-85/60-A2	0.14	1200	1100×2660
LSG(H)0.175-0.09-85/60-A2	0.175	1500	1200×2980
LSG(H)0.23-0.09-85/60-A2	0.23	2000	1300×3230
LSG(H)0.35-0.09-85/60-A2	0.35	3000	1500×3450
LSG(H)0.47-0.09-85/60-A2	0.47	4000	1600×3665
LSG(H)0.58-0.09-85/60-A2	0.58	5000	1700×4000
LSG(H)0.69-0.09-85/60-A2	0.69	6000	1800×4300
LSG(H)0.93-0.09-85/60-A2	0.93	8000	1900×4680
LSG(H)1.17-0.09-85/60-A2	1.17	10000	1900×4975
LSG(H)1.4-0.09-85/60-A2	1.4	12000	2000×5345
