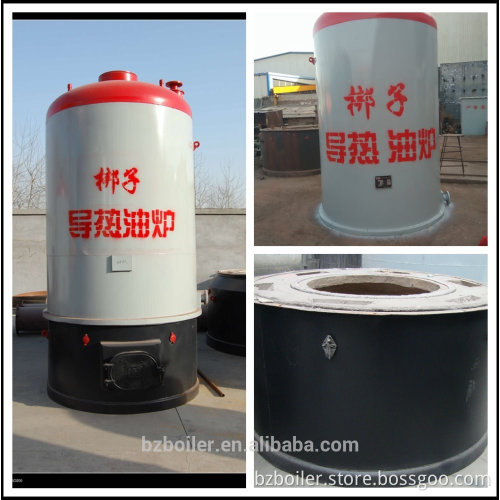

wood pellet fired thermal oil boiler for drying in wood making industry

wood pellet fired thermal oil boiler for drying in wood making industry product description Characteristics: 1.High-quality heat source; 2.Energy saving, low operating cost;  3.Low investment of equipment; 4.Safety; 5.Environmental protection; 6.Widely application   Advantage 1,The temperture of oil can rise to 300°C at the atmospheric pressure. 2,Thermal Oil doesn't cause any corrosion in the boiler plant. 3. Also incrustation and calcification don't accur. 4.In the normal climate conditions , freezing doesn't occur in boiler plant. 5.When necessary, hot water, boiling water and steam can be produced by means of thermal oil boiler. Temperature is checked easily. 6. Boiler plant maintenance costs are low.   This boiler is custom’s first choose as for an equipment of low pressure with high temperature. It is fired with coal, oil or gas and used heat conduction oil as heat carrier. The boiler supplies the heating with a close cycle. It carries the hot oil to the heat-transfer equipment then back to the boiler through forced circulation of hot oil pump. It has a widespread use on various fields.     Technical parameters

Projects	Unit	YGL-240S	YGL-350s	YGL-470s	YGL-700s	YGL-1000s	YGL-1400S
rated thermal power	kw	240	350	470	700	1000	1400
Max working pressure	Mpa	0.8	0.8	0.8	0.8	0.8	0.8
max temperature of medium	°c	300	300	300	300	300	300
medium capacity of boiler	m3	0.14	0.2	0.3	0.6	0.8	1.05
Pipe diameter	mm	65	80	80	80	125	125
thermal efficiency	%	84.53	84.1	82.8	82.3	82.35	82.37
Outer size	mm	Φ1350 *2655	Φ1555 *2769	Φ 1558 *3262	Φ1758 *3660	Φ1808 *4053	Φ2250 *3942
Circular flow of medium	m3/h	18	30	40	60	60	80
weight	kg	2560	3480	3870	5340	7420	10000

   Thermal oil boiler  auxilaries spare parts:        production courses   Workshop  Company Introduction1, Spirit: Supply Reliable & High Efficient Heating System. 2, Produce Capacity:  More Than 1000 Sets Of Boilers (5000 T/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, D2 Pressure Vessel Manufacturer. 3, Certification:All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 4, Business Promise:Each Boiler System Parts Is From First Class Brand All Over The World or China. 5, Quality Strict monitor. From The Material, Welding, To Finished Boiler Shipment; From Project Establishment, Drawing Design, To Final Audit. Advanced automatic welding with 100% passed penetrate X-Ray inspection. 6, User: We Are The Stable And Long Term Supplier Of Many Top 500 Groups All Over The World. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, Etc,. We are looking for long terms cooperation boilerusers,distributors, importers, agents worldwide!   customers Exhibition Customers:  Factory Visiting Customers   Certifications   Our Services We have rich successful export experiences for more than 30 years, and a full service will be provided: Two Year Warranty and Full Life service: Within two years, any fault caused by non-artificial reason we should maintain it freely. And Accessories & Components will be provide at any time. Installation and Commissioning: Hebei Gold Bangzi Boiler Co., Ltd. provides completed installation drawing and manual, and we shall provide one or two engineers to supervise the installation and the commissioning of the boiler for 10-15days if necessary. Documents will be provided: 1.        General drawing(lay-out) 2.        Ontology (Pressure parts miscellaneous) 3.        Piping and instrumentation diagram 4.        Installation instructions 5.        Pressure parts strength calculation summary table 6.        Certificate of quality   Contact us
