vertical manual control coal thermal oil boiler

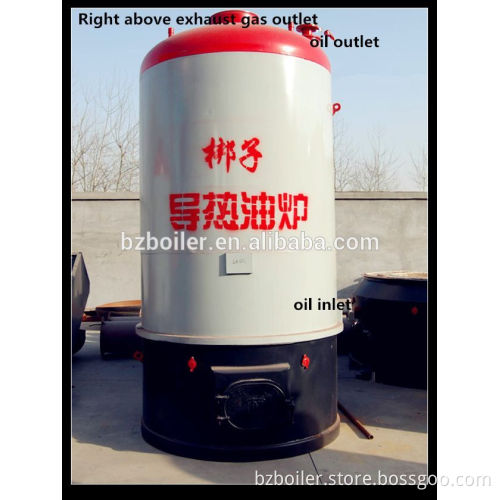

Company: YGL biomass fired thermal oil boilers are the vertical type compositional liquid forced circulation boilers. With the compact heating surface, all heaters consist of multilayer close-arranged coilers from inside, middle and outside and ceiling coil. The internal surface of the inner coils and middle coils works as the radiant heating surface; and the outer surface of the middle coils and the outer coils work as the convection heating surface. The boiler comprises the body on top and the combustor below. When the fuel burns sufficiently in the combustor and most of energy is absorbed by the radiant heating surface, the high temperature flue gas enters into the convection heating surface for heating exchange, then moves out from the boiler to heat the air that needed by the fuel firing in the air-pre-heater, then passes through the dirt remover; and finally it is sent into chimney by induced draft fan and discharged into atmosphere. The heating surface adopts the closely-arranged coils so as to lay out enough heating area, reduce the thermal load on the coil surface and ensure the safer usage of the thermal oils. The ceiling coil on the top of the radiant heating surface can better protect the top of the furnace and avoid it from being burned out. The exhaust gas outlet is positioned right above the boiler, which can balance the heating surface and rationalize the structure. With the reasonable process of the medium, the thermal oil enters into the boiler from the low position and flows out through the high position. In this way, the gas during the operation can be well-off discharged out of the boiler. The installation of the boiler is very convenient because only need to put the upper body and the below combustor together. And the installation period is very short.    Usage: 1,Chemical industry-polymerization industry,oil industry,reaction tank,distillation,enrichment; 2 ,Plastic industry-plastic and squeeze to finalize the design; 3 Textile industry- resin stenters,dyeing machine and the dry room,high temperature machine,roller; 4 Rubber industry-cooking,dry,vegetable oil refining 6 Wood industry-heating to finalize the design of chipboard,sandwich plate,wamu board,fiber; 7 Paper industry-multi-layer cardboard of packed carton box,dying and desiccation 8 Others-heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc   Certifications   Working room   Customers   Company Information Company Introduction 1, Spirit: Supply Reliable & High Efficient Heating System. 2, Produce Capacity:  More Than 1000 Sets Of Boilers (5000 T/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, D2 Pressure Vessel Manufacturer. 3, Certification:All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 4, Business Promise:Each Boiler System Parts Is From First Class Brand All Over The World or China. 5, Quality Strict monitor. From The Material, Welding, To Finished Boiler Shipment; From Project Establishment, Drawing Design, To Final Audit. Advanced automatic welding with 100% passed penetrate X-Ray inspection. 6, User: We Are The Stable And Long Term Supplier Of Many Top 500 Groups All Over The World. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, Etc,. We are looking for long terms cooperation boilerusers,distributors, importers, agents worldwide! Contact Person
