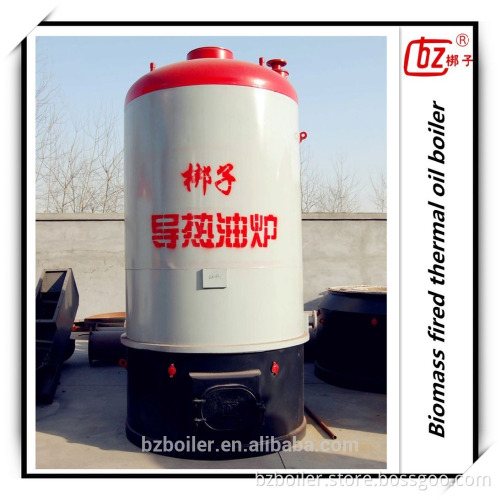

China manual multi fuel thermic fluid heater for vulcanizing rubber

China manual multi fuel thermic fluid heater for vulcanizing rubber Advantage 1,The temperture of oil can rise to 300°C at the atmospheric pressure. 2,Thermal Oil doesn't cause any corrosion in the boiler plant. 3. Also incrustation and calcification don't accur. 4.In the normal climate conditions , freezing doesn't occur in boiler plant. 5.When necessary, hot water, boiling water and steam can be produced by means of thermal oil boiler. Temperature is checked easily. 6. Boiler plant maintenance costs are low.   Features:   1.    Take multilayer closely aligned coils as heating area   Heating area is the multilayer closely aligned round coils. Heating area is arranged sufficiently to reduce the surface heat load of pipe and make the heat transfer oil use more safely.    2.    The ceiling coil   The ceiling coil on the top of the radiant heating surface can protect the furnace top from being burned out.   3.    Compact structure   The boiler is in compact structure, which greatly saves the space of boiler room.   4.     Micro-positive pressure combustion   The size of hearth matches the burning flame. It uses the barotropic combustion to increase the radiation heating efficiency.   5.    Air preheater   Air preheater is mounted at the tail of large boiler to improve the efficiency   6.    Rational medium procedure   The medium enters from the low position and flows out from the high position. In this way, the exhaust gas can be dischadrged out of the boiler smoothly.    7.    Good exhaust gas outlet position   The exhaust gas outlet sits right above the boiler, which can balance the heating surface and rationalize the structure.   8.    Convenient installation   The installation is very convenient and flexible, just need to place the boiler on the foundation.     technical parameters

Projects	Unit	YGL-240S	YGL-350s	YGL-470s	YGL-700s	YGL-1000s	YGL-1400S
rated thermal power	kw	240	350	470	700	1000	1400
Max working pressure	Mpa	0.8	0.8	0.8	0.8	0.8	0.8
max temperature of medium	°c	300	300	300	300	300	300
medium capacity of boiler	m3	0.14	0.2	0.3	0.6	0.8	1.05
Pipe diameter	mm	65	80	80	80	125	125
thermal efficiency	%	84.53	84.1	82.8	82.3	82.35	82.37
Outer size	mm	Φ1350 *2655	Φ1555 *2769	Φ 1558 *3262	Φ1758 *3660	Φ1808 *4053	Φ2250 *3942
Circular flow of medium	m3/h	18	30	40	60	60	80
weight	kg	2560	3480	3870	5340	7420	10000

        Certifications   Customers   Working room   Our Services  Pre-sale service: 1.According to the customer needs to recommend relative models machine. 2. According to the customer's special requirements to customize equipments. 3. Our engineers will supply the site and equipment drawing.   After-sale service: 1. According to the purchase contract, our company can send engineers to help  installation.  2. The quality guarantee is 2 year, not including the wearing parts. 3. Collecting customer feedback, solve the real problems faced by customers. FAQ FAQ: Q1: How to install a boiler? A1: Bangzi Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance   Q2:How many years is the boiler’s life span A2: The boiler is designed for 10years life span, but under good maintenance, usually the boiler can use at least 16years, Bangzi Boiler provide full life after-sales service to each sold boiler   Q3: How to choose a boiler model? A3: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, BangziBoiler will suggest a suitable model based on your usage   Q4: How is the warranty term? A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.  Contact
