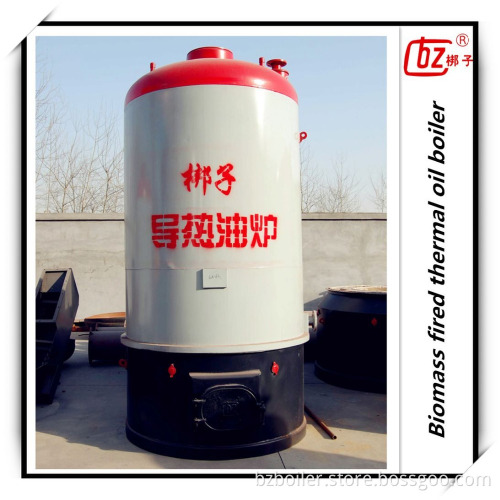

biomass pellets fuel high temperature thermal oil boiler price

biomass pellets fuel high temperature thermal oil boiler price   1.Features of biomass pellets thermal oil boiler   1.Good seal,large flexible space to increase the service life of the burner 2.triple coil structure is adopted by the boiler with three-pass flue gas, campact design and space-saving. 3.High efficiency of the air pre-heater enhance up to 92% or more. 4. Multiple running with safety protection make boiler's operation more safety and simply. 5.High temperature control precision and good combustion effect. 6.Automatic control functions, to extend the service life of equipment while saving human resources.   2. Advantages and service of biomass pellets thermal oil boiler   1),100%safety, running stably     2), Boiler running life > 20years.    3), Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.     4), We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.    5), Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.   3.Technical Parameters for biomass pellets thermal oil boiler :    Product Description Class A boiler manufacturer. 600 sets per year of boiler produce capacity. ASME, GB, CE, GOST, AS standard.

Thermal oil Heater Features

1. Rolling type grate: Burning coal in rolling mode, with high burnout rate, thoroughly treated side-sealed air, suitable to burn II III soft coal and coal gangue.

2. Adoption of automatic temperature control function is made to achieve stable heating and precise temperature adjustment, which may meet different requirements

3. It adopts perfect running control and safety monitoring device with safety, reliability and easy operation.

4. Fast packaged or assembled for shipment with easy transportation, short installation period, and fast return of Investment.

5. The boiler features heat preservation performance with high-efficiency heat preservation material and state-of-the-art construction technology, lower radiating loss of boiler wall.

6. Fast temperature rise, high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.

7. No black smoke escapes to help achievement of environmental protection

8. Outstanding energy-saving effect, saving energy by 10-15% compared with similar products, return of investment for the equipment in the whole boiler room may be attained by capital of saved energy for one year operation.    technical parameters

Projects	Unit	YGL-240S	YGL-350s	YGL-470s	YGL-700s	YGL-1000s	YGL-1400S
rated thermal power	kw	240	350	470	700	1000	1400
Max working pressure	Mpa	0.8	0.8	0.8	0.8	0.8	0.8
max temperature of medium	°c	300	300	300	300	300	300
medium capacity of boiler	m3	0.14	0.2	0.3	0.6	0.8	1.05
Pipe diameter	mm	65	80	80	80	125	125
thermal efficiency	%	84.53	84.1	82.8	82.3	82.35	82.37
Outer size	mm	Φ1350 *2655	Φ1555 *2769	Φ 1558 *3262	Φ1758 *3660	Φ1808 *4053	Φ2250 *3942
Circular flow of medium	m3/h	18	30	40	60	60	80
weight	kg	2560	3480	3870	5340	7420	10000

  Workshop We have totally five workshops which covers an area of nearly 3600 square meters and employ 600 person including more than 100 engineers and technicians. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certification.   Certificates We have the ISO9001 certificate and the National Grade-A boiler certificate, also with the Green product certificate and many Patent for invention certificates, etc.       Our Services      Pre-sale service: 1.According to the customer needs to recommend relative models machine. 2. According to the customer's special requirements to customize equipments. 3. Our engineers will supply the site and equipment drawing.   After-sale service: 1. According to the purchase contract, our company can send engineers to help  installation.  2. The quality guarantee is 2 year, not including the wearing parts. 3. Collecting customer feedback, solve the real problems faced by customers. Contact
