600000 to 12000000 kcal/h industrial therma oil heater for asphalt industry

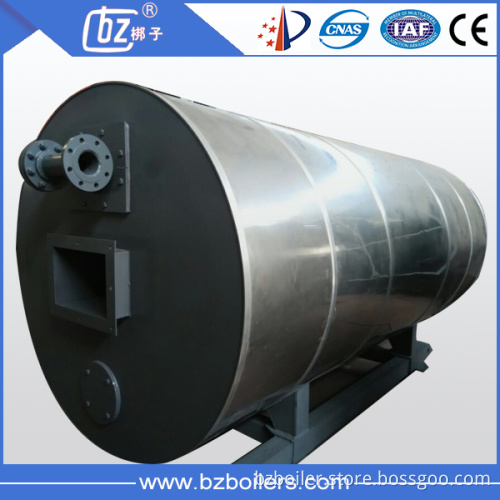

600000 to 12000000 kcal/h industrial therma oil heater for asphalt industry   product description Andvantage of the oil/gas fired thermal oil boiler Advanced three pass multi coils design Advanced manufacturing equipment endows Safe and reliable property Large boiler proper heating area High efficiency 90% PLC intelligent controller High standard High quality accessories Simple maintenance Meet customer’s customized requirement   Application scope of oil/gas fired thermal oil boiler   Petrochemical Industries: polymerization, melted, condensation, distillation, removal H2. Oil industry: fat and acid distillation, grease decomposition, concentrated, esterification, vacuum deodorizer, high-temperature cooking, advanced salad oil. Synthetic fiber industry: polymerization, melt spinning, extending, drying. Textile printing and dyeing industry: heat setting, hot melt dyeing, melt bake calendering drying, high temperature stenter, oar yarn. Plastics and rubber industry: hot pressing, hot cast, vulcanization molding, calendering injection machine, plastic mixer, conveyor dryer, screw extruder. Paper Industry: dry, corrugated paper processing, egg tray, food cardboard drying, calendering machine, roller. Timber industry: multilayer plywood, fiberboard molding, plywood, wood drying, steaming equipment. Building materials industry: road bitumen heating, gypsum board drying, heating bitumen concrete, concrete elements curing, drying equipment. Air-conditioning industry: industrial plants, residential and hotel building heating. Detergent Industry: cooking boiler, autoclave, spray-washing tower, a conveyorized dryer, lipolysis device distillation column. The automotive industry: the tunnel-type drying room, degreasing baths, phosphate processing equipment. Electrical equipment industry: calendering machine, the platen machines, vacuum pan, dryer. Pictures of thermal oil boiler
  Technical parameters

Projects	units	YQW-700Q	YQW-1000Q	YQW-1400Q	YQW-2000Q	YQW-2400Q	YQW-2900Q	YQW-3500Q	YQW-4700Q	YQW-6000Q	YQW-7000Q	YQW-10000Q	YQW-12000Q	YQW-14000
Thermal power rating	kw	700	100	1400	2000	2400	2900	3500	4700	6000	7000	10000	12000	14000
Design pressure	mpa	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
highest   medium pressure	°c	320	320	320	320	320	320	320	320	320	320	320	320	320
inner  medium capacity	m3	0.51	0.6	0.94	1.54	1.9	2.37	3.54	4.34	6.46	7.83	12.5	14	15
cycle volume of medium	m3/h	40	60	80	160	160	180	200	250	350	350	400	500	600
pipe connection diameter	mm	80	125	125	150	150	150	200	200	250	250	300	350	350
thermal efficiency	%	90	90	90	90	90	90	90	90	90	90	90	90	90
heating surface area	m²	39.84	50.5	72.29	91.67	115.68	138.65	163.21	206.84	249.71	300.73	395	480	570
weight	t	5.5	7	9.8	12.7	14.6	17.5	23.2	27	33.6	40	48.5	60	86
transport size	length        (mm)	3793	4044	4724	5187	5870	6115	6766	7695	8424	9096	10000	11500	14100
	width (mm)	1830	1956	2161	2449	2560	2664	3058	3135	3405	3631	4010	4180	4250
	height (mm)	1915	2007	2217	2428	2506	2707	3018	3088	3388	3593	4100	4250	4300

      Installation drawing of gas or oil fired thermal oil heaters:       Accessories   production courses   Company Information Hebei Gold Bangzi Boiler Co., Ltd, as a large-scale 30 years professional manufacturing enterprise for A level boiler and D2 level pressure vessel, is a 30 years factory with ISO certification . The factory specializes in the design, development , production and marketing of boilers and pressure vessels. Our products cover coal fired, biomass fired, gas and oil fired hot water boiler, steam boiler, thermal oil boiler, waste heat boiler and devulcanizer...etc.     Company Introduction 1, Spirit: Supply Reliable & High Efficient Heating System. 2, Produce Capacity:  More Than 1000 Sets Of Boilers (5000 T/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, D2 Pressure Vessel Manufacturer. 3, Certification:All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 4, Business Promise:Each Boiler System Parts Is From First Class Brand All Over The World or China. 5, Quality Strict monitor. From The Material, Welding, To Finished Boiler Shipment; From Project Establishment, Drawing Design, To Final Audit. Advanced automatic welding with 100% passed penetrate X-Ray inspection. 6, User: We Are The Stable And Long Term Supplier Of Many Top 500 Groups All Over The World. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, Etc,. We are looking for long terms cooperation boilerusers,distributors, importers, agents worldwide! customers Exhibition Customers:  Factory Visiting Customers    Certifications   FAQ Q1: How to install a boiler? A1: Bangzi Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance   Q2:How many years is the boiler’s life span A2: The boiler is designed for 10years life span, but under good maintenance, usually the boiler can use at least 16years, Bangzi Boiler provide full life after-sales service to each sold boiler   Q3: How to choose a boiler model? A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, BangziBoiler will suggest a suitable model based on your usage.   Q4: How is the warranty term? A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.    Contact us
