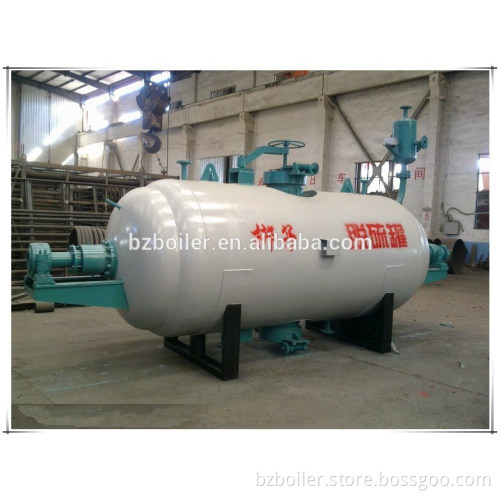

Tyre Recycling Machine-Devulcanizer

Usage:
It adopt new equipment and process of high temperature dynamic desulfidation. In order to reach even and effective desulfidation. We can put pulverous cross linked rubber, softener, activator and water into the pot with heating hermetically and mixing continuously.     Parameter:

Parameter Content	Model
	ZT-4.5R	ZT-6R		ZT-8R
Design Pressure	2.1Mpa	2.1Mpa		2.1Mpa
Working Pressure	1.8Mpa	1.8Mpa		1.8Mpa
Design Temperature	3000C	3000C		3000C
Working Temperature	2090C	2090C		2090C
Active Volume	4.5m3	6m3		8m3
Rotate Speed of Blender	16r/min	15r/min		15r/min
Jacket Volume	1.04 m3	1.6 m3		1.8 m3
Design Pressuer of Jacket	0.5Mpa	0.5Mpa		0.5Mpa
Working Pressure of Jacket	0.3Mpa	0.4Mpa		0.4Mpa
Heating Method	Heat conduction oil
Hear Exchange Area	12.55 m2	15 m2	17 m2



Parameter Content	Model
	ZT-4.5R	ZT-6R		ZT-8R
Design Pressure	3.0Mpa	3.0Mpa		3.0Mpa
Working Pressure	2.85Mpa	2.85Mpa		2.85Mpa
Design Temperature	3000C	3000C		3000C
Working Temperature	2330C	2330C		2330C
Active Volume	4.5 m3	6 m3		8 m3
Rotate Speed of Blender	16r/min	15r/min		15r/min
Jacket Volume	1.04 m3	1.6 m3		1.8 m3
Design Pressuer of Jacket	0.5Mpa	0.5Mpa		0.5Mpa
Working Pressure of Jacket	0.3Mpa	0.4Mpa		0.4Mpa
Heating Method	Heat conduction oil
Hear Exchange Area	12.55 m2	15 m2	17 m2
Motor Power	18.5kw	18.5kw	18.5kw
