Basketball hoop YT001

$4000.00 - $4200.00/

Min. Order:: 1

Min. Order:: 1

Transportation:: Ocean

Port:: Qingdao Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500 every month
Supply Ability:	The quality is strictly controlled and it has iso certification. Efficient delivery
Certificate:	FIBA certified
HS Code:	95066210
Transportation:	Ocean
Port:	Qingdao Port

Product Description

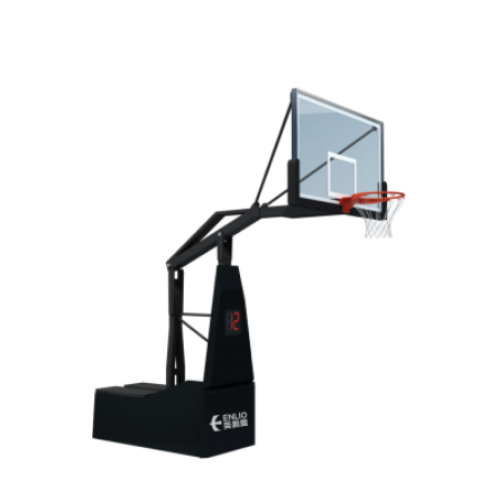

The size of the basketball stand base is 2.15x1.1 meters (including the cover 2.3x1.3 meters), and the extension arm is 2.35 meters (the position of the cover calculates the extension arm 2.25 meters).

The base of the basketball stand is welded together with rectangular square tubes of 120mm*60mm*2.5mm.

The basketball stand column is made by welding square tubes of 120mmx120mmx4.5mm and 100mmx100mmx2.75mm together.

The extension arm is welded with 140mm*140mm*2.75mm square tubes and 140mm*80mm*2.5mm square tubes. The connecting parts of the basketball stand column and the rotating part of the extension arm head are all made of high-quality copper sleeves, which are safe and reliable in performance. The rear pull rod of the basketball stand is welded with 100mm*100mm*2.75mm precisely drawn square tubes.

The upper pull rod is made of round tubes with a diameter of 48mm and a wall thickness of 3mm. It is formed in one piece, avoiding the risk of rust caused by electric welding and welding slag. The reasonable structural design is in harmony with the unique appearance.

The front column, base and extension arm of the basketball hoop are equipped with special protective covers, which can effectively protect athletes from impact.

The base is integrated with a high-performance spring system composed of six springs, which provides auxiliary elastic force during the lifting and lowering process of the basketball stand, allowing for the easy folding and lifting of the basketball stand.

The spring group is made of high-quality spring steel with a diameter of 8mm, featuring high strength and good toughness.

It is equipped with an embedded timer. The display screen size is 440x380x70(mm), the display dot matrix is 32x32, P10. The power supply mode is AC 190~250V. The communication mode is:

Wireless communication (LORA spread spectrum 433M), multi-channel variable interference prevention, overall power ≤10W, full sheet metal chassis, weight 7Kg (one set).

Rebound specification:

1800x1050 (mm), equipped with the internationally recognized high-strength safety glass backboard (12mm thick), it features high transparency, good weather resistance, anti-aging, corrosion resistance, and is not easy to blur. The basketball board glass meets the 3C certification standard, and the lower edge side of the backboard is covered with high-grade polyurethane protective rubber strips, which can effectively protect athletes from injury when they dunk.

It adopts the new national standard basket, made of φ20 solid round steel, and has good bending resistance.

The spring is made of thickened high-grade spring steel and meets the standards of international competitions.
