Best Offer Seed Cleaning Machine for Wheat Corn Beans Maize

Best Offer Seed Cleaning Machine for Wheat Corn Beans Maize

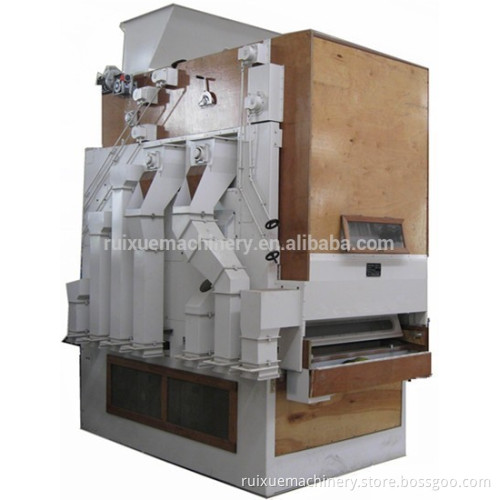

  INTRODUCTION of Seed Cleaning Machine for Wheat Corn Beans Maize The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds. The standard design of the machine is provided with both pre and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks. The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation. The technology of the machine is thoroughly tested, which can be documented by many references all over the world.    Easy and quick operation and screen changing The screen boxes are made of wear resistant plywood, which is approved for food Screen cleaning with special rubber balls Built-in light Durable surface of the machine owing to high-quality powder lacquering    SPECIFICATION Seed Cleaning Machine for Wheat Corn Beans Maize

Model	5X-5	5X-12
Dimension(L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Overall weight	3250 kg	3600 kg
Rated capacity	5 t/h	12 t/h
Overall air volume	8200 m3	12520 m3
External air blower	4-72N0-6A, 7.5 kW	4-79N0-6A, 11kw
Vibration sieve motor(gear motor)	2.2 kW	2.2 kW
Back lifting system motor	3.0 kW	3.0 kW
Feeding motor	1.5 kW	1.5kw
Total Power	6.7 kW	6.7kw
Air Blower Type	centrifuge air blower
Top air blower Rotary speed	4-79NO6A,1400 r/min
Back lifting air blower Rotary speed	100~1000 r/min
Screen Type	piercing screen
Screen Dimension (L×W)	800×1250 mm
Frequency	300(80~400) times/min
Amplitude	30 mm
Layers and number	4 layers,7 pieces	5 layers,15 pieces
Screen number and type
level 1	1 piece round hole	3 pieces slot hole
level 2	2 pieces slot hole	3 pieces slot hole
level 3	2 pieces slot hole	3 pieces slot hole
level 4	2 pieces slot hole	3 pieces slot hole
level 5	null	3 pieces slot hole
